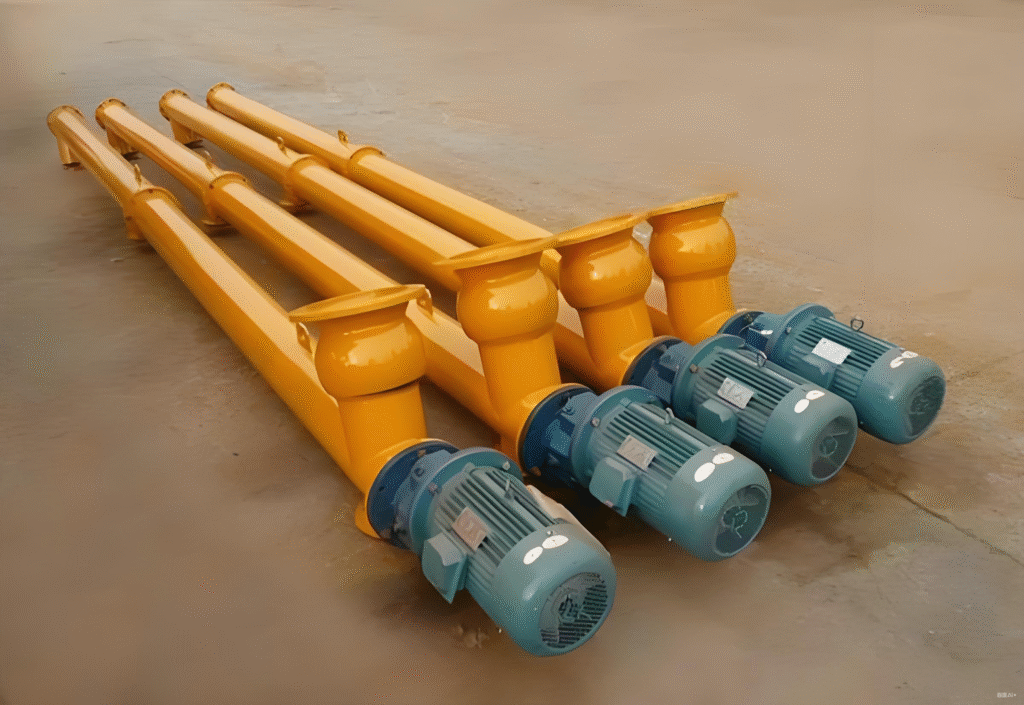

GL Series Tubular Screw Conveyor for Cement, Fly Ash & Bulk Powder
(Konveyor Sekrup Tabung Seri GL untuk Semen, Abu Terbang & Bubuk Curah)
Enclosed screw conveyor for efficient powder conveying, dust-proof transport, and continuous feeding
Overview

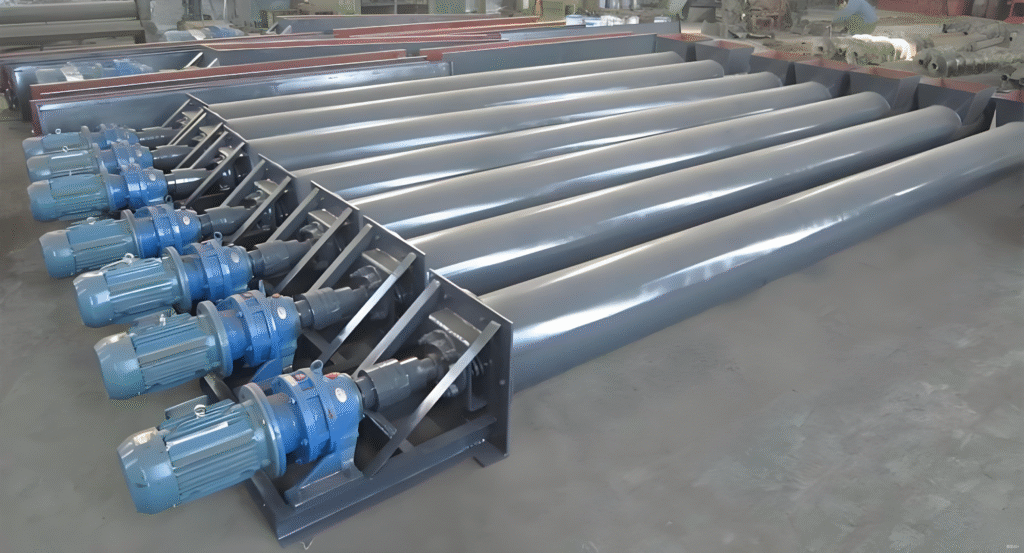

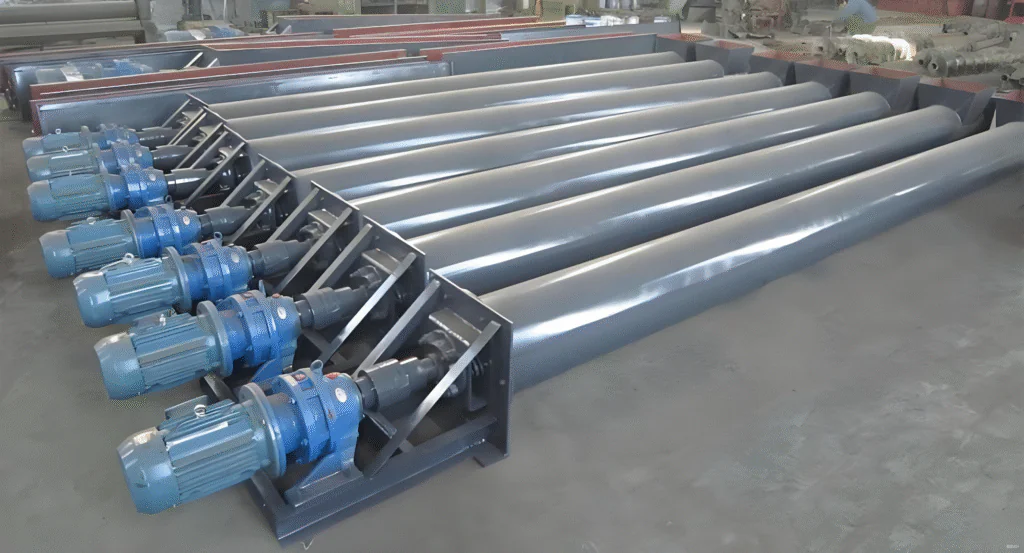

The GL Series tubular screw conveyor, also known as an enclosed screw conveyor or tube screw conveyor, is designed for efficient and dust-free conveying of bulk powders and granular materials.
Featuring a fully enclosed circular tube structure, this tubular screw conveyor ensures clean operation, prevents material spillage, and minimizes environmental contamination. It is widely used for conveying cement, fly ash, lime powder, grain, sand, sludge, and other bulk materials in continuous and automated handling systems.
The GL Series tubular screw conveyor supports horizontal, inclined, or vertical installation, making it a flexible solution for cement plants, dry mortar production lines, mining facilities, and bulk powder processing systems.
For a detailed explanation of screw conveyor fundamentals, refer to the Wikipedia entry on screw conveyors.
To explore more bulk material handling equipment and complete conveying solutions, visit LVRUI’s bulk material handling equipment page.
Features
✅ Fully enclosed tube-body structure for dust-free powder conveying
✅ Suitable for cement, fly ash, and dry bulk powder materials
✅ High performance, low dust pollution
✅ Carbon steel / stainless steel housing options
✅ Wear-resistant screw flights, long service life
✅ Compact design for easy installation
✅ Easy maintenance and low power consumption
✅ Ideal for continuous tubular screw conveying systems
Technical Specifications
| Item | Specification |
|---|---|
| Conveyor Type | GL Series Tubular Screw Conveyor |
| Diameter Options | Φ159 / Φ219 / Φ273 / Φ323 / Φ355 / Φ407 mm |
| Capacity | 5–200 t/h (depending on material) |
| Conveying Length | 1–40 m (single or multiple sections) |
| Material of Trough | Carbon steel / Stainless steel |
| Screw Flight | Continuous welded or sectional flights |
| Inlet Feeding | Fixed inlet / multiple inlets optional |
| Outlet Discharge | End discharge / multiple outlets optional |
| Drive Power | 1.5–37 kW (based on size & length) |
| Working Angle | 0°–35° |
| Sealing System | Dust-proof sealing and bearing protection |
| Bearings | Heavy-duty hanger bearings with lubrication |
| Applicable Materials | Cement, fly ash, lime powder, grain, sand, sludge |
| Optional Features | Inspection covers, anti-wear lining, frequency inverter, level sensors |
*Technical specifications are for reference only.
The above tube screw conveyor system specifications are for reference only. Conveyor diameter, length, screw pitch, material selection, and drive power can be customized according to different bulk materials and conveying capacities.
Applications
✅ Cement batching plants
✅ Dry mortar mixing systems
✅ Mining & processing plants
✅ Grain and powder handling
✅ Fly ash conveying systems
✅ Silo feeding & discharging
✅ Industrial powder transport
✅ Waste residue conveying
For low-energy powder conveying over long distances, the enclosed screw conveyor can be combined with an Air Slide Conveyor.
Advantages
✅ Dust-free conveying with enclosed structure
✅ Strong wear resistance & long life
✅ Stable material flow without clogging
✅ Customizable diameter and length
✅ Low power consumption
✅ Low maintenance cost
✅ Compatible with automated powder batching systems
FAQS About Tubular Screw Conveyors
Q1: What is a tubular screw conveyor used for?
A: A tubular screw conveyor is used for enclosed conveying of bulk powders and granular materials, such as cement, fly ash, lime powder, grain, and industrial residues. Its enclosed design ensures clean and dust-free operation.
Q2: What is the difference between a tubular screw conveyor and a U-type screw conveyor?
A: A tubular screw conveyor features a fully enclosed circular tube, providing better dust sealing and environmental protection. U-type screw conveyors are open-top and more suitable for less dusty materials.
Q3: Can a tubular screw conveyor handle cement and fly ash?
A: Yes. Tubular screw conveyors are widely used for cement and fly ash conveying, especially in applications requiring dust control and continuous material flow.
Q4: Is a tubular screw conveyor suitable for inclined or vertical conveying?
A: Yes. Tubular screw conveyors can be installed horizontally, inclined, or vertically depending on layout requirements, although capacity may vary with installation angle.
Q5: How do I choose the right tubular screw conveyor size?
A: Selection depends on material bulk density, required capacity, conveying length, and installation angle. LVRUI engineers can recommend the optimal tubular screw conveyor system based on your application.
