Butterfly Damper Valve for Dust Collection Ducts and Industrial Airflow Control
Compact Single-Blade Dampers for Dust Collection Ducts, Bag Filters, Cyclones, Pneumatic Conveying Lines, and Cement Plant Ventilation

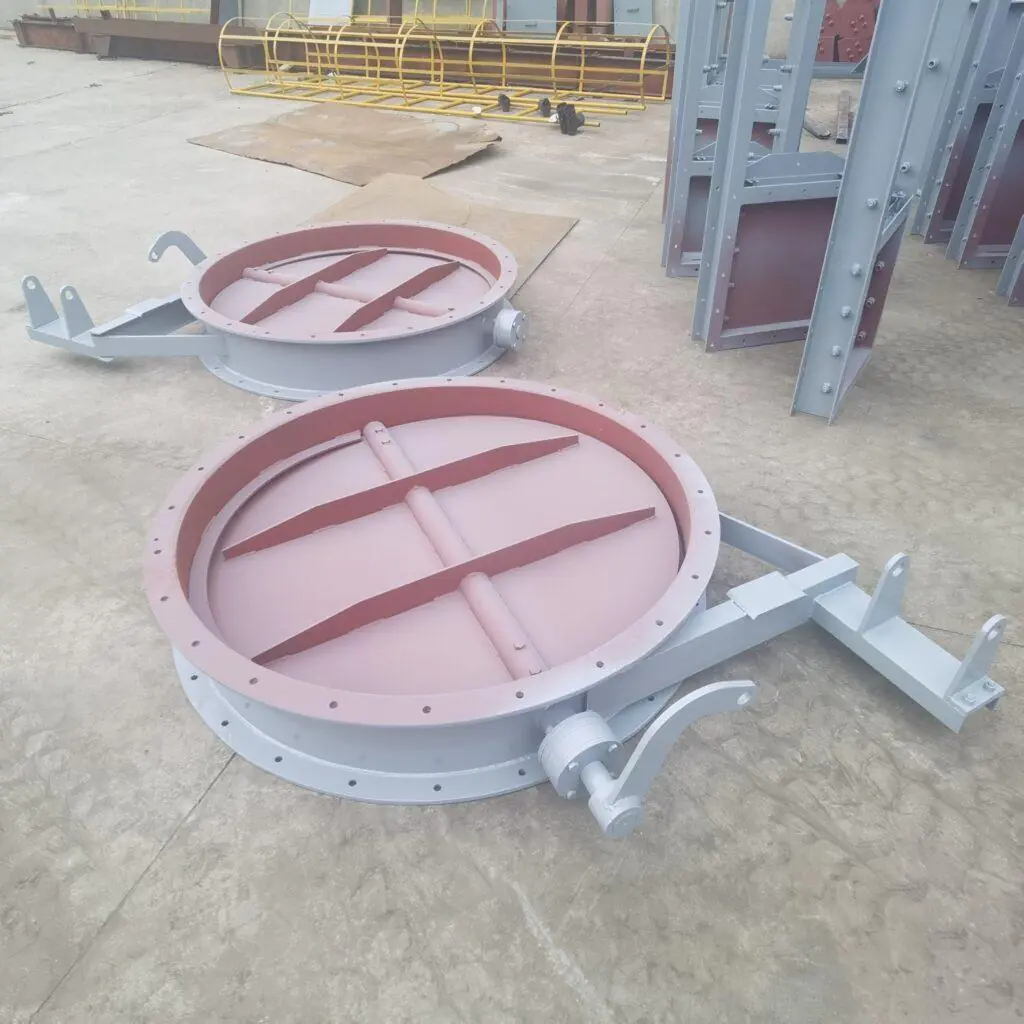

What Is a Butterfly Damper Valve?
A butterfly damper valve is a single-blade industrial airflow control device used to regulate, isolate, or shut off air and gas flow in dust collection ducts, bag filter systems, cyclone separators, pneumatic conveying lines, and cement plant ventilation networks.
Compared with a multi-blade louver damper valve, a butterfly damper valve has a more compact structure, faster opening and closing response, and easier installation in round ducts or limited-space duct systems. It is commonly used where reliable airflow shut-off, simple regulation, low pressure loss, and easy maintenance are required.
LVRUI butterfly damper valves can be supplied with manual, electric, pneumatic, or motorized actuators. They are suitable for positive-pressure and negative-pressure duct systems, dust extraction lines, industrial ventilation networks, and bulk material handling projects in cement plants, fly ash handling systems, mineral powder plants, and other powder processing industries.
Key Features of Butterfly Dampers
| Feature | Engineering Value |
|---|---|
| Single-Blade Structure | Provides compact design, quick opening and closing, and simple airflow control in industrial ducts. |
| Fast Airflow Shut-Off | Suitable for dust collector ducts, cyclone outlets, ventilation branches, and pneumatic conveying lines. |
| Low Pressure Loss | Helps reduce airflow resistance when the blade is fully or mostly open. |
| Manual, Electric, or Pneumatic Operation | Supports local operation, remote control, and automatic interlocking with dust collection or ventilation systems. |
| Carbon Steel or Stainless Steel Body | Allows selection according to duct environment, corrosion risk, temperature, and dust characteristics. |
| Positive and Negative Pressure Compatibility | Can be used in suction ducts, exhaust lines, dust extraction networks, and process air systems. |
| Custom Diameter and Flange Design | Available for standard and customized duct sizes according to project drawings. |
When Should You Use a Butterfly Damper Valve?
A butterfly damper valve is suitable when the project requires compact duct airflow control, fast shut-off, simple regulation, or equipment isolation in an industrial ventilation or dust collection system.
It is commonly selected for:
✅ Dust collector inlet and outlet ducts
✅ Bag filter branch ducts
✅ Cyclone separator exhaust outlets
✅ Fan inlet and outlet airflow control
✅ Cement plant ventilation lines
✅ Pneumatic conveying air ducts
✅ Material transfer dust extraction points
✅ Bulk loading and unloading dust collection systems
For large ducts requiring smoother airflow balancing and lower pressure loss during modulation, a louver damper valve may be more suitable. For powder discharge control, a flow control gate valve, slide gate valve, rotary valve, or flap valve should be considered instead.
Actuator Options
| Actuator Type | Best For | Main Advantage | Typical Use |
|---|---|---|---|
| Manual Actuator | Low-frequency adjustment, maintenance isolation, and simple duct systems. | Low cost, simple operation, and easy installation. | Auxiliary ventilation ducts, branch lines, local shut-off points. |
| Electric Actuator | Remote airflow control, centralized control room operation, and precise opening adjustment. | Supports automatic control and position feedback. | Bag filter ducts, cement plant ventilation, process air control. |
| Pneumatic Actuator | Frequent open/close operation and fast interlocked control. | Fast response and suitable for automatic dust extraction systems. | Cyclone outlets, dust collector branches, pneumatic conveying ducts. |
| Motorized Actuator | Larger sizes or heavier industrial damper structures requiring stable torque output. | Stable operation for large-diameter dampers and continuous industrial use. | Large duct systems, heavy-duty ventilation lines, cement plant process ducts. |
The actuator should be selected according to operation frequency, automation level, required response speed, valve size, available air supply, and whether PLC or control room integration is required.
Technical Specifications
| Specification Item | Recommended Details |
|---|---|
| Valve Type | Single-blade butterfly damper for industrial airflow and dust control. |
| Diameter Range | DN250–DN3000; DN300, DN450, DN600, DN800, DN1000, DN1200 and larger sizes can be customized. |
| Body Material | Carbon steel, stainless steel, or customized material according to temperature, corrosion, and dust conditions. |
| Blade Structure | Welded single-blade structure with optional reinforced blade for large duct sizes. |
| Operation Method | Manual, electric actuator, pneumatic actuator, or motorized actuator. |
| Working Pressure | Low-pressure industrial airflow and ventilation ducts; pressure condition should be confirmed before quotation. |
| Sealing Design | Standard sealing, shaft sealing, flange sealing, or low-leakage design available upon request. |
| Control Feedback | Optional limit switch, position indicator, open/close signal, or PLC-compatible feedback. |
| Installation Method | Flange connection, welded duct connection, or customized interface for industrial duct systems. |
| Typical Applications | Dust collectors, bag filters, cyclones, pneumatic conveying ducts, cement plant ventilation, exhaust ducts, and material transfer dust extraction points. |
| Customization Data Required | Duct diameter, air volume, temperature, dust concentration, pressure condition, actuator type, installation direction, and flange drawing. |
Available Sizes & Customization
The Butterfly Damper Valve is offered in a wide range of diameters from DN300 to DN3000, including DN450, DN600, DN800, DN1000, DN1200, and larger customized sizes for heavy-duty industrial ducts.

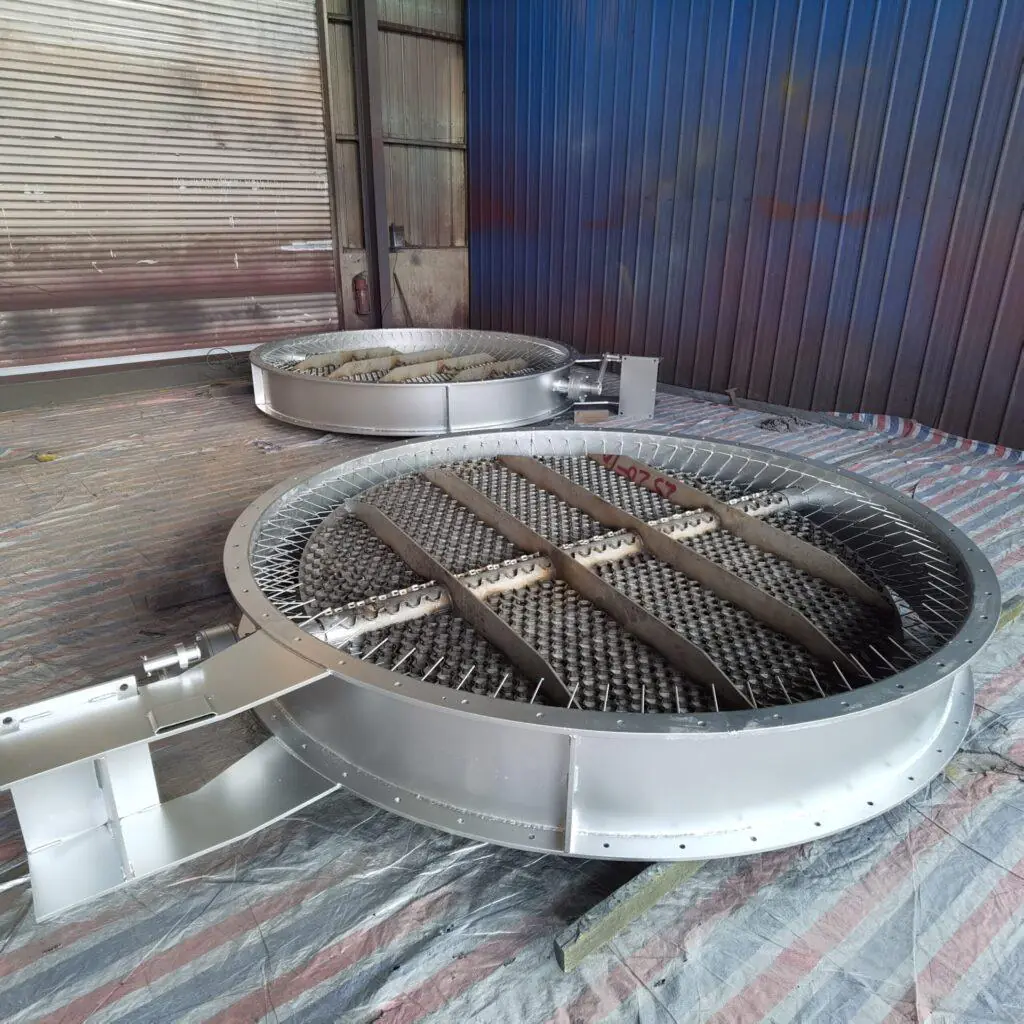

Special materials, high-temperature designs, and customized flange standards can be engineered to meet specific project requirements.
This valve ensures reliable airflow shut-off, dust control, and industrial ventilation, and is commonly integrated with LVRUI dust collection systems for optimized performance.
For industrial dust safety standards and guidelines, refer to OSHA – Combustible Dust Safety.
Advantages of Butterfly Damper Valve for Industrial Airflow & Dust Control
✅ Fast shut-off response for emergency or precise airflow control
✅ Low pressure drop for energy-efficient operation
✅ Durable one-piece welded body for heavy-duty applications
✅ Multiple actuator options: manual, electric, pneumatic
✅ High-temperature & corrosion-resistant variants available
✅ Suitable for dusty and abrasive environments
✅ Seamless integration with dust collectors & conveying systems
✅ Compatible with PLC automation and centralized control
✅ Ideal for industrial ventilation & pneumatic conveying ducts
✅ Optimized for dust collector damper applications
Explore more → bulk material handling equipment .
Butterfly Damper Valve vs Louver Damper Valve
| Comparison Item | Butterfly Damper Valve | Louver Damper Valve |
|---|---|---|
| Blade Structure | Single rotating blade or disc. | Multiple parallel blades connected by a linkage mechanism. |
| Best Use | Compact ducts, quick shut-off, and simple airflow regulation. | Large ducts, smoother airflow balancing, and lower pressure loss. |
| Response Speed | Fast opening and closing. | More suitable for gradual modulation and balanced airflow distribution. |
| Pressure Loss | Low when fully open, but may be higher in large ducts when partially open. | Usually more stable in large ducts and high-volume airflow systems. |
| Installation Space | Compact and easier to install in round ducts. | Requires more structure and linkage space. |
| Typical Applications | Dust collector ducts, cyclone outlets, pneumatic conveying ducts, branch ventilation lines. | Kiln exhaust ducts, preheater ducts, baghouse systems, large process air ducts. |
| Recommended Selection | Choose when compact structure, fast action, and simple operation are more important. | Choose when large airflow volume, smoother regulation, and lower pressure loss are more important. |
A butterfly damper valve is usually better for compact duct systems and fast airflow shut-off, while a louver damper valve is more suitable for large ducts, smoother airflow balancing, and lower pressure loss in industrial ventilation systems.
Butterfly Damper Valve Is Not for Direct Powder Discharge
A butterfly damper valve is designed for airflow, gas flow, ventilation, and dust extraction duct control. It is not normally used as the main shut-off valve for direct cement powder, fly ash, clinker dust, or abrasive bulk material discharge.
If the application is powder discharge under a silo, hopper, chute, or conveyor inlet, a flow control gate valve, slide gate valve, rotary valve, flap valve, or double flap valve is usually more suitable. If the application is duct airflow control before or after a dust collector, bag filter, cyclone, or fan, a butterfly damper valve is a suitable option.
Typical Installation Positions
| Installation Position | Main Purpose | Related Equipment |
|---|---|---|
| Dust Collector Inlet / Outlet | Isolates or regulates airflow entering and leaving the dust collector. | Dust collection system, pulse jet filter, bag filter. |
| Cyclone Separator Outlet | Controls exhaust airflow and supports stable cyclone operation. | Cyclone dust collector, fan, exhaust duct. |
| Bag Filter Branch Duct | Balances or isolates airflow in individual dust extraction branches. | Baghouse, filter chamber, branch duct. |
| Pneumatic Conveying Duct | Provides fast airflow shut-off or isolation in low-pressure conveying lines. | Air slide conveyor, blower system, duct network. |
| Cement Plant Ventilation Line | Regulates ventilation airflow around mills, packing plants, and transfer points. | Cement mill, raw mill, packing line, transfer chute. |
| Fan Inlet / Outlet | Helps control air volume and system pressure before or after the fan. | Exhaust fan, induced draft fan, process fan. |
| Material Transfer Dust Extraction Point | Controls suction airflow near loading, unloading, or transfer equipment. | Loading spout, hopper, chute, conveyor transfer point. |
How to Select the Right Butterfly Damper Valve
| Selection Factor | What to Confirm | Why It Matters |
|---|---|---|
| Duct Diameter | DN size, round duct diameter, flange standard, installation space. | The damper must match the duct connection and site layout. |
| Airflow Volume | Air volume, flow velocity, fan capacity, and system pressure. | These data affect blade size, actuator torque, and pressure loss. |
| Dust Type | Cement dust, fly ash, kiln dust, mineral powder, grain dust, or abrasive particles. | Dust characteristics affect sealing design, wear resistance, and maintenance frequency. |
| Operating Temperature | Normal temperature, peak temperature, hot gas condition. | High-temperature ducts may require heat-resistant materials and protected shaft structures. |
| Control Purpose | Shut-off, airflow regulation, isolation, balancing, or emergency cut-off. | Different purposes require different actuator types and sealing levels. |
| Actuator Type | Manual, electric, pneumatic, or motorized operation. | The actuator should match automation level, response speed, and available site utilities. |
| Sealing Requirement | Standard sealing, low leakage, shaft sealing, or flange sealing. | Better sealing reduces air leakage and improves dust collection efficiency. |
| Control Signal | Limit switch, position indicator, open/close signal, or PLC feedback. | Feedback is important for automatic control and safe system operation. |
To select the right butterfly damper valve, buyers should confirm duct diameter, airflow volume, dust type, operating temperature, control purpose, actuator type, sealing requirement, and control signal before quotation.
FAQs About Butterfly Damper Valves
What is a butterfly damper valve used for?
A butterfly damper valve is used to regulate, isolate, or shut off airflow in industrial ducts, dust collection systems, bag filters, cyclone separators, pneumatic conveying lines, and cement plant ventilation systems.
What is the difference between a butterfly damper valve and a butterfly valve?
A butterfly damper valve is mainly used for low-pressure air or gas flow control in ducts, while a butterfly valve is usually used for liquid or gas flow in piping systems with higher sealing and pressure requirements.
Is a butterfly damper valve suitable for dust collector systems?
Yes. It is commonly installed in dust collector inlets, outlets, branch ducts, cyclone outlets, and bag filter systems to isolate airflow, regulate suction, and support stable dust extraction.
When should I choose a butterfly damper instead of a louver damper?
Choose a butterfly damper when the duct is compact, quick shut-off is required, and simple airflow control is enough. Choose a louver damper for large ducts, smoother modulation, and lower pressure loss under high airflow volume.
Can butterfly dampers be automated?
Yes. They can be equipped with electric, pneumatic, or motorized actuators, and optional limit switches or position feedback can be added for PLC or control room integration.
What materials are available?
Common materials include carbon steel and stainless steel. For high-temperature, abrasive, or corrosive environments, reinforced blades, wear-resistant parts, or heat-resistant designs can be customized.
Can this damper be used in cement plants?
Yes. It can be used in cement plant ventilation ducts, dust extraction systems, bag filters, cyclone separators, pneumatic conveying lines, packing plants, and material transfer dust collection points.
What information is needed for quotation?
Please provide duct diameter, airflow volume, working temperature, dust type, pressure condition, actuator preference, flange drawing, installation direction, and control signal requirements.
Is a butterfly damper valve used for airflow or powder flow?
A butterfly damper valve is mainly used for airflow, gas flow, ventilation, and dust extraction duct control. It is not normally used for direct cement powder or fly ash discharge. For powder discharge control, a flow control gate valve, slide gate valve, rotary valve, or flap valve is usually more suitable.
Where is a butterfly damper valve installed in a dust collection system?
It can be installed at the dust collector inlet, dust collector outlet, bag filter branch duct, cyclone outlet, fan inlet, fan outlet, or material transfer dust extraction point. The exact position depends on airflow direction, duct layout, pressure condition, and maintenance requirements.
What actuator should I choose for a butterfly damper valve?
A manual actuator is suitable for simple local operation and low-frequency adjustment. An electric actuator is suitable for remote control and PLC integration. A pneumatic actuator is suitable for fast open-close operation and automatic interlocking in dust extraction systems. The final choice should depend on operation frequency, valve size, control signal, site utilities, and automation level.
What is the difference between a butterfly damper valve and a flow control gate valve?
A butterfly damper valve controls airflow or gas flow in industrial ducts. A flow control gate valve controls dry bulk material discharge from silos, hoppers, air slide conveyors, or chute systems. If the medium is air or gas, choose a damper valve. If the medium is cement powder, fly ash, or other bulk solids, choose a flow control gate valve.
