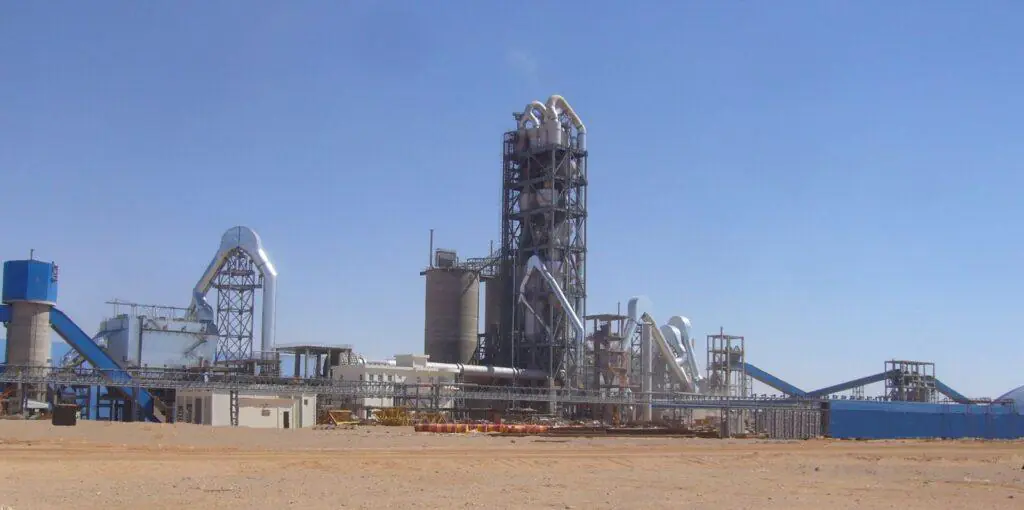

Cement Bulk Material Handling Solutions for Cement Plants
Integrated Silo Discharge, Powder Conveying, Flow Control, Bulk Loading and Dust Collection
What Are Cement Bulk Material Handling Solutions?
Cement bulk material handling solutions integrate equipment for silo discharge, flow control, powder conveying, bulk loading or process feeding, and dust collection.
A typical process follows:
Storage Silo → Silo Discharge → Flow Control → Powder Conveying → Bulk Loading or Process Feeding → Dust Collection
The correct configuration depends on material properties, required capacity, conveying distance, silo layout, receiving equipment and available installation space. Overall system performance depends on matching the capacity and operating conditions of each stage—not the rated capacity of a single conveyor, valve or loader.
Jiangsu Lvrui Machinery Co., Ltd. supplies individual machines and coordinated equipment packages based on confirmed project data, connection dimensions and plant drawings.
Select a Solution by Operating Problem
| Operating Problem | Recommended Solution | Typical Equipment |
|---|---|---|
| Silo arching, caking or unstable discharge | Cement Silo Discharge System | Aeration equipment, lump breaker, isolation gate and flow control gate |
| Powder must move between storage and process equipment | Powder Transfer System | Air slide conveyor, screw conveyor or bucket elevator |
| Feed rate is unstable or exceeds downstream capacity | Flow Control System | Flow control gate, shut-off valve, rotary valve or diverter valve |
| Dust is generated during tanker or truck loading | Bulk Truck Loading System | Cement bulk loader, loading spout, level signal and dust collection connection |
| Dust escapes from silos, conveyors or transfer points | Dust Control System | Bag filter, pulse jet dust collector, ducting and collection hood |
The correct cement bulk material handling solutions should be selected from the complete operating problem rather than one visible symptom. Unstable silo discharge, for example, may involve aeration, material caking, outlet dimensions and downstream capacity.
Main Cement Bulk Material Handling Solutions
Cement Silo Discharge System
A cement silo discharge system controls the transfer of fine powder from the silo cone to downstream conveying or loading equipment.
Typical components include:
✅ Aeration pads or aeration boxes
✅ Manual slide gate
✅ Lump breaker
✅ Pneumatic shut-off valve
✅ Flow control gate
✅ Downstream air slide conveyor
The configuration depends on powder flowability, caking tendency, silo outlet dimensions and downstream capacity. Aeration improves material flow, the lump breaker handles hardened powder lumps, and the gates isolate or regulate discharge.
Powder Transfer System
A powder transfer system moves dry material between storage silos, process equipment and loading points.
The conveying method depends on the material properties and transfer route:
✅ Air slide conveyor: for fluidizable cement, fly ash and mineral powder where sufficient inclination is available
✅ Screw conveyor: for short distances, controlled feeding and restricted layouts
✅ Bucket elevator: for vertical material lifting
✅ Belt conveyor or chain conveyor: for clinker, aggregate and other granular or lumpy materials
Air slide conveyors use low-pressure air to fluidize fine powder, which then moves mainly by gravity. The selected conveyor capacity must match both the upstream discharge rate and downstream equipment.
Flow Control System
A bulk material flow control system regulates, isolates or redirects material between silos, conveyors and loading equipment.
Typical components include:
✅ Flow control gate
✅ Pneumatic shut-off valve
✅ Manual slide gate
✅ Rotary valve
✅ Diverter valve
✅ Air slide diverter
Valve selection depends on the material properties, required flow rate, operating function and downstream equipment. Flow control equipment regulates material feeding but does not replace proper silo aeration or lump-breaking equipment where arching and caking occur.
Dust-Controlled Bulk Truck Loading System
A bulk truck loading system transfers cement powder and other dry bulk materials into tankers or trucks while reducing dust release and material loss.
Typical components include:
✅ Cement bulk loader or telescopic loading spout
✅ Flow-control and shut-off equipment
✅ Flexible loading connection
✅ Tanker high-level sensor or weighing signal
✅ Integrated filter or external dust collection connection
✅ Local control or plant interlock
Loading can be stopped by a high-level sensor, external weighing signal or plant-control interlock. Actual dust-control performance depends on the loading seal, extraction airflow, filter capacity, material properties and operating procedure.
Dust Control System
A cement plant dust control system captures airborne powder generated during silo filling, material transfer, conveying and bulk loading.
Typical equipment includes:
✅ PPCS bag filter: for centralized dust collection and larger air volumes
✅ HMC pulse jet dust collector: for compact local dust sources
✅ Loading-point dust collector: for tanker and truck loading stations
✅ Ducting and collection hoods: for connecting dust sources to the collector
Collector selection should consider the dust source, required airflow, duct resistance, filter area, installation space and dust-return arrangement.
Material Type Determines the System Design
Different bulk materials require different discharge, conveying and loading structures.
| Material | Main Characteristics | Typical Equipment Direction |
|---|---|---|
| Cement and fly ash | Fine and readily fluidized powder | Air slide conveyor, flow control gate and enclosed powder loader |
| Slag or limestone powder | Fine powder with variable flowability | Air slide or screw conveyor after material review |
| Mineral powder | Fine dry powder; properties vary by source | Enclosed conveying and controlled discharge |
| Clinker | Granular, abrasive and sometimes hot | Bucket elevator, chain or belt conveyor and clinker bulk loader |
| Collected filter dust | Fine and sometimes cohesive | Screw conveyor, rotary valve or controlled discharge equipment |
| Hardened powder lumps | May obstruct valves and conveyors | Lump breaker before downstream equipment |
Cement powder and clinker require different conveying and loading structures because their particle size, abrasiveness and flow behaviour are different.
Material temperature, moisture and bulk density should also be confirmed before selecting equipment.
How to Select a Cement Material Handling Solution
Selecting suitable cement bulk material handling solutions requires both material data and a clear understanding of the complete process layout.
Please provide the following project information:
✅ Material type, bulk density and particle size
✅ Moisture content, operating temperature and abrasiveness
✅ Required handling capacity
✅ Horizontal conveying distance and vertical lifting height
✅ Silo outlet dimensions and elevation
✅ Existing upstream and downstream equipment
✅ Loading method and dust-control requirements
✅ Plant layout or general arrangement drawing
For existing plants, clear site photographs and measured connection dimensions are also recommended.
System capacity must be reviewed across the complete process. Actual output is limited by the lowest-capacity stage, such as the silo outlet, valve, conveyor, loader or dust collection system.
Scope of Supply and Technical Support
LVRUI can supply individual equipment or coordinated equipment packages for silo discharge, powder conveying, flow control, bulk loading and dust collection.
Available support includes:
✅ Equipment recommendations based on project data
✅ General arrangement and connection drawings
✅ Customized inlet, outlet and flange dimensions
✅ Production drawings for confirmation
✅ Inspection of key dimensions and components
✅ Export packing and shipment identification
✅ Installation instructions
✅ Remote technical guidance
On-site installation is completed by the customer or its appointed local contractor. LVRUI provides drawings and remote support but does not undertake overseas on-site installation.
For customers searching for individual machines rather than a coordinated process solution, view our cement plant bulk material handling equipment categories.
Cement Bulk Material Handling Solutions FAQs
What systems are included in cement bulk material handling?
Typical stages include silo discharge, flow control, horizontal or vertical conveying, bulk loading and dust collection. The exact combination depends on the material, required capacity and plant layout.
Which conveying equipment is suitable for cement powder?
An air slide conveyor is commonly used for fluidizable cement powder where sufficient inclination is available. A screw conveyor may suit short or restricted routes, while a bucket elevator is used for vertical lifting.
Can the same handling system process cement powder and clinker?
Not without changing the equipment configuration. Cement is a fine fluidizable powder, while clinker is granular and abrasive. Clinker normally requires heavier conveying equipment and a dedicated clinker loading structure.
How can unstable cement silo discharge be improved?
The silo outlet, aeration arrangement, material moisture, hardened lumps, flow-control equipment and downstream conveyor capacity should be checked together. No single valve or aeration device can solve every discharge problem.
What information is required before selecting a system?
Provide the material properties, required capacity, conveying distance, silo outlet dimensions, receiving equipment, dust-control requirements and plant layout.
Can LVRUI supply individual machines and coordinated equipment packages?
Yes. LVRUI can supply individual conveyors, valves, loaders and dust collectors, or coordinate several machines according to the confirmed process layout and connection requirements.
Get a Cement Material Handling Recommendation
Send LVRUI your material data, capacity requirements and plant layout. Our team will review the process and recommend suitable cement bulk material handling solutions for discharge, conveying, flow control, loading and dust collection.
