FIBC Bag Filling Machine for Cement Powder
Big Bag Filling and Packing Machine for Cement, Fly Ash, Slag Powder and Dry Bulk Materials
What Is a FIBC Bag Filling Machine?
A FIBC bag filling machine is used for filling large flexible bulk bags with cement powder, fly ash, slag powder, limestone powder, mineral powder and other dry bulk materials. LVRUI designs big bag filling machines for cement plants, grinding stations, fly ash handling systems and building material production lines, integrating automatic weighing, pneumatic bag clamping, controlled feeding, dust collection interface and heavy-duty support structure to improve packing efficiency and reduce dust during the filling process.
This equipment is also known as a big bag filling machine, jumbo bag filling machine, cement big bag filling machine, bulk bag filler or ton bag packing machine.
Main Features
Designed for Cement Powder and Dry Bulk Materials
✅ Suitable for cement powder, fly ash, slag powder, limestone powder and mineral powder
✅ Suitable for dry powder and fine bulk materials
✅ Can be connected with silo discharge systems, screw conveyors, air slide conveyors or feeding hoppers
✅ Helps improve big bag packing efficiency in cement and building material plants
Automatic Weighing System
✅ Load cell weighing system
✅ Real-time weight monitoring
✅ Coarse and fine feeding control available
✅ Helps reduce material loss and improve filling accuracy
✅ Suitable for 500 kg, 1000 kg, 1500 kg and 2000 kg big bag filling requirements
Stable Feeding and Flow Control
✅ Screw feeding, gravity feeding or customized feeding method available
✅ Flow control valve can be added according to material characteristics
✅ Suitable for powder materials with different flowability
✅ Helps reduce sudden material impact during filling
✅ Can be matched with upstream conveying and discharge equipment
Dust Control During Filling
✅ Enclosed filling head design
✅ Dust collection interface available
✅ Bag mouth clamping and sealing structure
✅ Helps reduce dust leakage during cement big bag filling
✅ Suitable for cement plants and indoor packing stations
Bag Clamping and Support Structure
✅ Pneumatic bag clamping system
✅ Adjustable filling spout
✅ Heavy-duty support frame
✅ Platform and safety guard can be customized
✅ Suitable for different FIBC bag sizes and lifting loop designs
Customizable System Design
✅ Customized according to bag size
✅ Customized according to filling weight
✅ Customized according to site layout
✅ Customized according to feeding method
✅ Customized according to required packing capacity
✅ Optional dust collector, conveyor, flow control valve and control cabinet
Application Materials
| Term | Best Use |
|---|---|
| FIBC Bag Filling Machine | Professional product name for filling flexible intermediate bulk containers |
| Big Bag Filling Machine | Common buyer search term for large bag filling equipment |
| Jumbo Bag Filling Machine | Common term used in cement, mineral powder and bulk material projects |
| Cement Big Bag Filling Machine | Long-tail keyword for cement powder filling applications |
| Bulk Bag Filler | Shorter industrial term, often used by overseas buyers |
| Ton Bag Packing Machine | Common name for 500–2000 kg big bag packing systems |
Reference: Materials Handling
Typical Application Scenarios

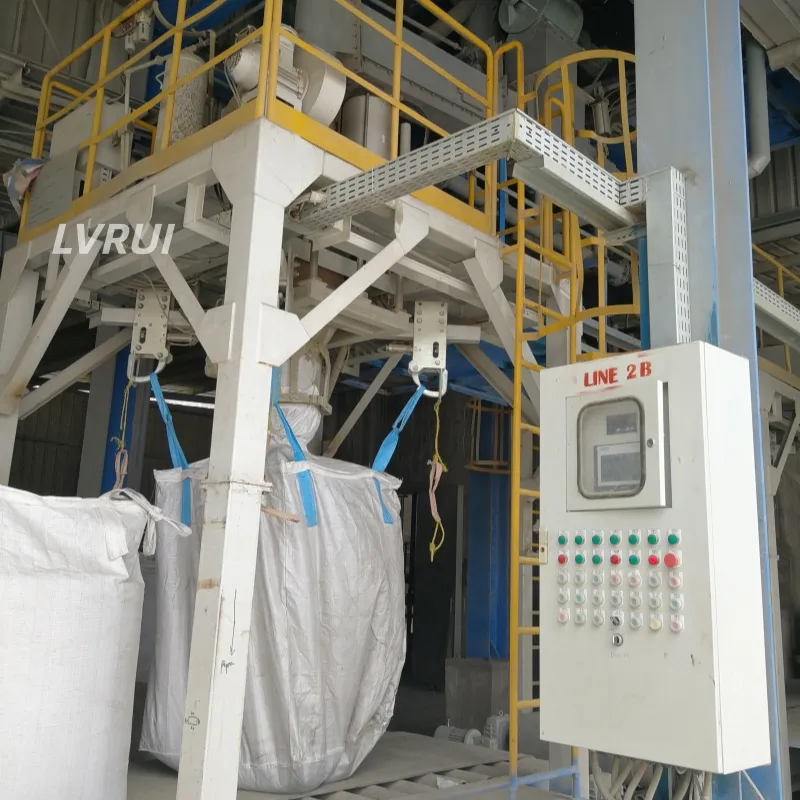

Cement Plant Big Bag Filling
The FIBC bag filling machine can be used for cement powder packing when bulk cement needs to be packed into jumbo bags for storage, transport or project supply.
Fly Ash and Slag Powder Packing
For fly ash and slag powder, the system can be equipped with suitable feeding and dust collection devices to improve filling stability and keep the working area cleaner.
Grinding Station Powder Packing
In cement grinding stations or mineral powder plants, the big bag filling machine can be installed after silo discharge or powder conveying systems to complete dry powder packaging.
Building Material Production Line
For dry powder mortar, limestone powder and other building material powders, the system can be customized according to material flowability, bag weight and production capacity.
Technical Highlights
✅ Capacity: 10–60 bags/hour
✅ Bag weight range: 500–2000 kg
✅ Filling accuracy: ±0.2–0.5%
✅ Application material : Cement powder, fly ash, slag powder, limestone powder, mineral powder
✅ Control system : Manual, semi-automatic or automatic control
✅ Feeding method: screw / belt / gravity

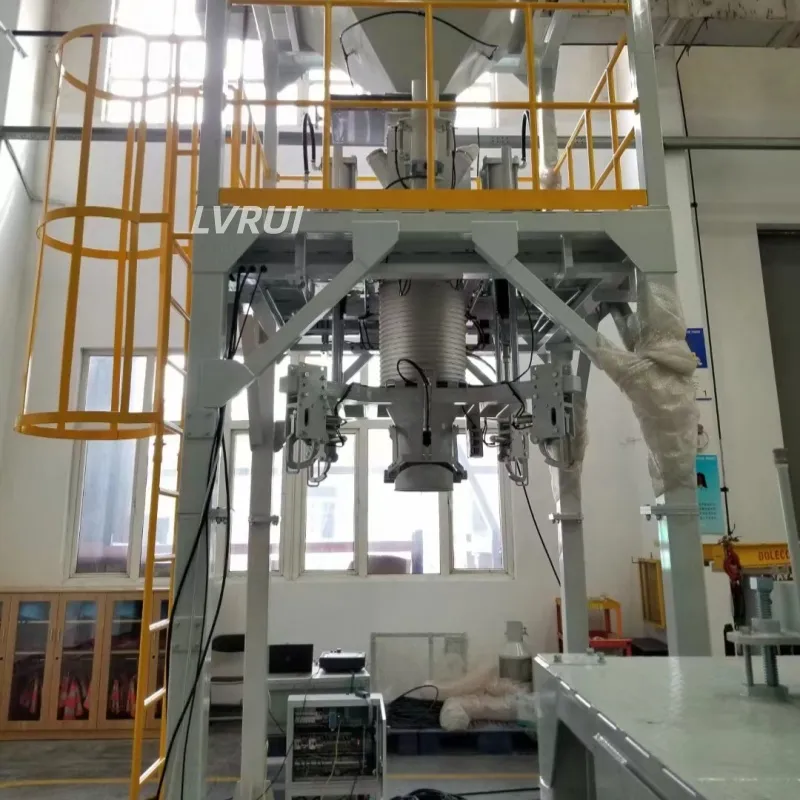

System Components
A complete FIBC bag filling machine for cement powder can include:
✅ Storage hopper or silo discharge connection
✅ Feeding device
✅ Flow control valve
✅ Weighing system
✅ Filling head
✅ Pneumatic bag clamping device
✅ Bag support frame
✅ Dust collection interface
✅ Control cabinet
✅ Optional conveyor or pallet handling system
FIBC Bag Filling Machine vs Cement Big Bag Filling Machine
An FIBC bag filling machine describes the bag type. A cement big bag filling machine describes the application material.
In many cement powder projects, both terms may refer to the same type of equipment. When the system is designed for cement powder, fly ash, slag powder and other dry bulk materials, it can be called a FIBC bag filling machine for cement powder or a cement big bag filling machine.
For SEO and buyer understanding, this page uses both terms naturally because different customers may search with different names.
Why Choose LVRUI FIBC Bag Filling Machine?
✅ Focus on cement and bulk powder handling equipment
✅ Experience with dry powder conveying, loading, filling and dust control systems
✅ Customized design according to material, bag size and site layout
✅ Can provide matching equipment such as flow control valves, conveyors and dust collectors
✅ Suitable for cement plants, grinding stations and building material production lines
✅ Practical structure for overseas industrial projects
Related Equipment
The FIBC bag filling machine can be used together with:
✅ Air slide conveyor
✅ Screw conveyor
✅ Flow control gate valve
✅ Lump breaker
✅ Bag filter dust collector
✅ Bulk loader system
✅ Powder transfer system
✅ Cement silo discharge system
FAQs About FIBC / Jumbo Big Bag Filling Machines
What is a FIBC bag filling machine?
A FIBC bag filling machine is a packing system used to fill large flexible bulk bags with powder or granular materials. In cement applications, it is commonly used for cement powder, fly ash, slag powder, limestone powder and other dry bulk materials.
Is a FIBC bag filling machine the same as a big bag filling machine?
Yes. A FIBC bag filling machine is also commonly called a big bag filling machine, jumbo bag filling machine, bulk bag filler or ton bag packing machine. These names usually refer to equipment used for filling large industrial bags.
Can this machine be used as a cement big bag filling machine?
Yes. When the system is designed for cement powder, fly ash, slag powder and dry bulk materials, it can be used as a cement big bag filling machine. The feeding method, weighing system and dust control design should be selected according to cement powder characteristics.
What materials can be filled by this machine?
It can fill cement powder, fly ash, slag powder, limestone powder, mineral powder and other dry powder materials. For materials with poor flowability, the feeding and discharge structure should be customized.
How does the machine control filling weight?
The machine can use a load cell weighing system to monitor the filling weight. Coarse feeding and fine feeding control can be used to improve filling accuracy and reduce overfilling.
How does the system reduce dust during filling?
The system can use an enclosed filling head, pneumatic bag clamping and a dust collection interface. These designs help reduce dust leakage when filling cement powder and other fine materials.
Can the FIBC bag filling machine be connected with a silo?
Yes. It can be connected with a cement silo, fly ash silo, powder hopper, screw conveyor, air slide conveyor or other feeding equipment. The connection method depends on the site layout and material flow condition.
What information is needed for quotation?
To recommend a suitable FIBC bag filling machine, please provide the material name, bulk density, bag size, target bag weight, required capacity, feeding method, site layout and dust control requirement.
