Flow Control System for Cement Silos & Bulk Powder Handling

Isolation, Regulation and Routing for Powder and Selected Coarse Bulk Materials

What Is a Flow Control System?

A Flow Control System coordinates valves and actuators to start, stop, regulate or redirect dry bulk materials between silos, hoppers and downstream equipment. Typical components include shut-off valves, slide gate valves, flow control gates, diverter valves and pneumatic or motorized actuators.

At LVRUI, these systems are primarily used for powder handling in cement plants, including cement, raw meal, fly ash and mineral powder. For suitable coarse materials such as clinker, limestone and aggregates, rod gates and sector gates can also be selected. The system controls material discharge and routing; conveying and precise mass-flow measurement require separate equipment.

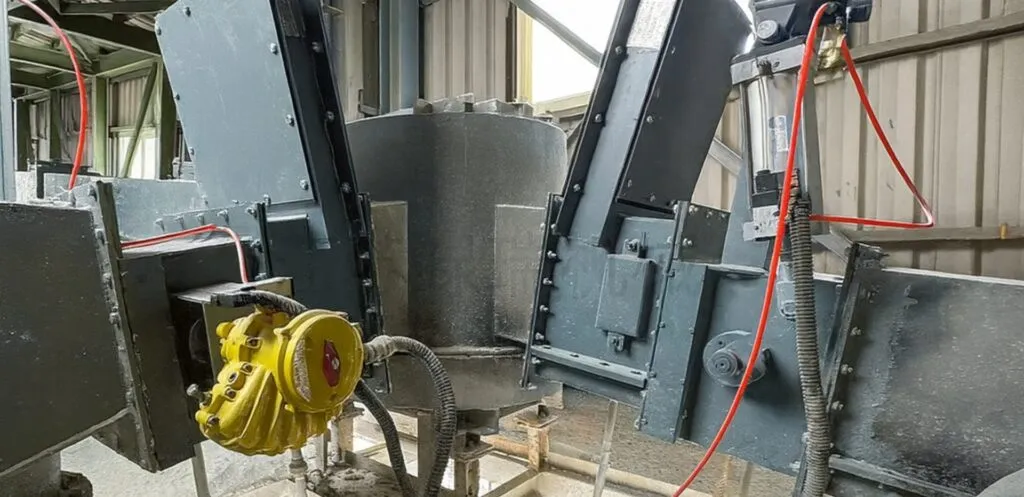

Flow control gate for cement silo bottom discharge system
Heavy-duty flow control gate installed at cement silo bottom outlet

Four Functions of a Flow Control System

Material Isolation

Shut-off valves and slide gate valves provide on/off isolation in powder-handling lines. For suitable coarse materials such as clinker, limestone and aggregates, a rod gate can provide upstream material isolation.

Adjustable Discharge

A flow control gate adjusts the discharge opening between a silo or hopper and downstream equipment to regulate material feeding. For suitable coarse materials, a sector gate controls gravity discharge.

Material Routing

A diverter valve or air slide diverter directs material from one source to the selected downstream line. The configuration depends on the number of outlets and conveying layout.

Position Feedback and Interlocking

Pneumatic or motorized actuators can be equipped with limit switches and position feedback to coordinate valve operation with downstream equipment and plant control systems.


Typical Flow Control System Configurations

Single Silo to One Downstream Line

Silo → Shut-Off Valve → Flow Control Gate → Downstream Equipment

This arrangement is used where one silo feeds a single air slide conveyor, screw conveyor, feeder or other downstream process. The shut-off device provides isolation, while the flow control gate adjusts the discharge opening.

Single Silo to Multiple Routes

Silo → Flow Control Gate → Diverter → Line A / Line B

This configuration is suitable when material from one storage source must be directed to alternative conveying lines, storage points or loading routes. The diverter determines the destination while the upstream gate controls material release.

Automated Downstream Feeding

Silo → Isolation Device → Pneumatic or Motorized Flow Control Gate → Process Equipment

Where remote operation is required, actuator status and gate-position signals can be coordinated with downstream equipment. The system can be configured so that material is released only when the receiving equipment is ready.

Clinker and Aggregate Discharge Control

Hopper → Rod Gate → Sector Gate → Downstream Conveyor

Rod gates and sector gates can be used together for handling coarse bulk materials such as clinker, limestone and aggregates. The rod gate provides upstream material isolation, while the sector gate controls downstream gravity discharge. The configuration depends on material characteristics, required capacity and hopper layout.

Manual rod gate and electro hydraulic sector gate installed beneath an aggregate silo
Manual rod gate and electro hydraulic sector gate for aggregate silo discharge

System Configuration Options

✅ Actuation Options — Manual, pneumatic or motorized drives can be selected according to operating frequency, available utilities and control requirements.
✅ Control Interfaces — Limit switches, position feedback and interlocking signals can be added where remote monitoring or coordinated operation is required.
✅ Customized Connections — Valve and gate sizes, flange dimensions and actuator arrangements can be matched to confirmed silo or hopper outlets and downstream equipment.
✅ Optional Upstream Lump Breaking — A lump breaker can be considered upstream where hardened powder lumps may interfere with discharge.


How Does a Flow Control System Work?

A Flow Control System coordinates isolation, discharge regulation and material routing according to the process requirements.

Step 1 — Downstream equipment becomes ready.
The receiving conveyor, feeder, loading equipment or process unit is prepared before material discharge begins.

Step 2 — The material route is selected where required.
If multiple downstream lines are available, a diverter directs material to the selected destination.

Step 3 — The isolation device opens.
A shut-off valve, slide gate or rod gate opens the material passage according to the material type and application.

Step 4 — The discharge opening is adjusted.
A flow control gate regulates powder discharge, while a sector gate controls gravity discharge of suitable coarse bulk materials.

Step 5 — Material enters the downstream equipment.
Material flows by gravity or through the connected conveying equipment to the receiving process.

Step 6 — Operating status is confirmed.
Where fitted, limit switches, position feedback or other control signals confirm the operating position of the relevant valves and gates. During shutdown or an interlock condition, the isolation and regulating devices follow the required closing sequence.


Select Flow Control Equipment by Function

Operating RequirementTypical EquipmentMain Function
Stop powder material flowShut-Off Valve / Slide Gate ValveIsolation
Isolate coarse bulk materialsRod GateUpstream isolation
Adjust powder discharge openingFlow Control GateFlow regulation
Control coarse material dischargeSector GateGravity discharge control
Switch material between routesDiverter ValveRouting
Fast remote on/off operationPneumatic ActuatorAutomated operation
Remote adjustable electric operationElectric Actuator with Modulating ControlAdjustable positioning
Break hardened powder lumpsLump BreakerUpstream lump breaking

The final equipment configuration should be selected according to the required funsction, material properties and operating conditions rather than using one valve type for every material-handling application.


Flow Control System vs Other Material Handling Systems

SystemMain PurposePrimary Function
Flow Control SystemControl material discharge at silos, hoppers and transfer pointsIsolation, discharge regulation and routing
Cement Silo Discharge SystemImprove reliable material flow from silo outletsFlow assistance and silo discharge
Powder Transfer SystemMove material between process pointsMaterial conveying
Dust Control SystemCapture airborne dustDust extraction and filtration

For a broader overview of conveying, silo discharge, loading and dust-control systems, see our Cement Bulk Material Handling Solutions.


Where Does a Flow Control System Fit in the Process Line?

Typical control points include:
✅ Silo or hopper outlet → air slide conveyor, screw conveyor or feeder
✅ Storage silo → multiple conveying routes
✅ Intermediate bin → downstream process equipment
✅ Powder discharge line → bulk loading, weighing or batching equipment
✅ Coarse-material hopper → isolation and gravity discharge equipment

The Flow Control System is typically installed at a material discharge or distribution point where isolation, adjustable feeding or route selection is required. Equipment selection depends on material properties and process requirements.

Flow control system for cement silo with shut-off valve, flow control gate and diverter
Typical arrangement for material isolation, discharge regulation and route control.

Information Required for Flow Control System Selection

Please provide:
✅ Material type, bulk density and particle size (including maximum size for coarse materials)
✅ Material properties: moisture, cohesion, abrasiveness and temperature
✅ Required handling capacity
✅ Silo or hopper outlet dimensions
✅ Downstream equipment and number of discharge routes
✅ Required function: isolation, regulation or routing
✅ Available compressed air or electrical power, control requirements and installation layout

Based on these details, LVRUI can recommend suitable equipment, actuators and system configurations.


Flow Control System FAQs

Can a Flow Control System be integrated with an existing plant control system?

Yes. The system can be connected to a plant PLC through suitable limit-switch signals, position feedback and control interfaces. Signal types, interlocks and operating sequences should be confirmed during system design.

Can flow control equipment be customized for existing silo or hopper outlets?

Yes. Valve and gate dimensions, flange connections and actuator arrangements can be customized according to confirmed outlet dimensions, installation space and downstream equipment.

Does a Flow Control System prevent material blockage?

Not by itself. Material blockage also depends on flowability, moisture, caking and hopper geometry. For powder materials, aeration equipment or a lump breaker may help where required. For coarse materials, particle size and discharge opening dimensions must also be considered. For cohesive bulk solids, shear testing can help evaluate flow properties relevant to hopper design. See the ASTM D6128-22 standard for shear testing of bulk solids for reference.

How should pneumatic and electric actuators be selected?

Pneumatic actuators are suitable for fast on/off operation where compressed air is available. Electric actuators are suitable where electrical operation is preferred; a modulating type is required when remote adjustment of the gate opening is needed.depends on operating frequency, available utilities and control requirements.
