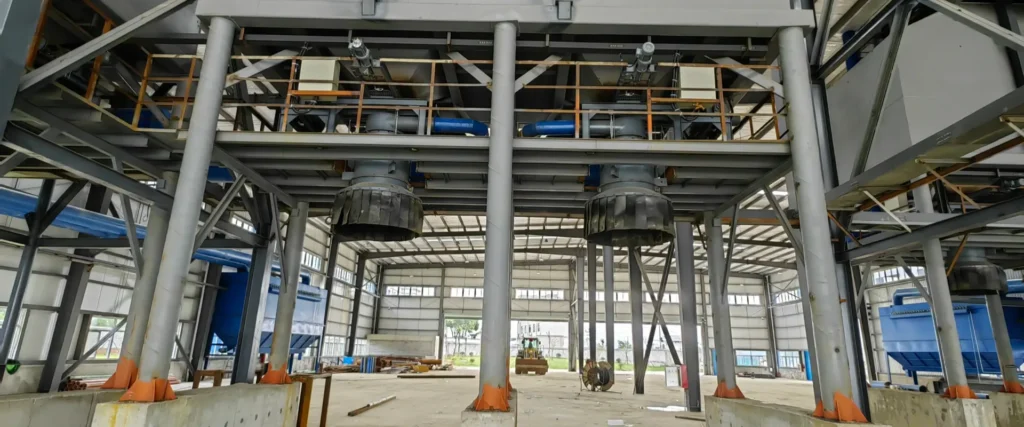

Loading Spouts for Dust-Free Bulk Material Loading
Telescopic Loading Spouts for Trucks, Railcars, Ships, Barges and Stockpiles
What Are Loading Spouts?
Loading spouts are retractable loading devices designed to guide bulk materials from silos, hoppers, conveyors or storage bins into receiving vehicles or stockpiles. They are also called telescopic loading chutes, bulk loading spouts, loading bellows or loading chute systems in different industries.
In dry bulk material handling systems, open discharge can cause dust leakage, material spillage, uneven loading and poor site conditions. A properly selected loading spout helps control the material flow path, reduce free-fall height and improve loading efficiency.
They are commonly used for:
✅ Cement tanker loading
✅ Fly ash truck loading
✅ Lime powder loading
✅ Grain loading
✅ Fertilizer loading
✅ Mineral powder loading
✅ Railcar loading
✅ Ship and barge loading
✅ Stockpile loading
✅ Silo discharge loading points
For cement plants and powder handling projects, loading spouts are often installed below silos, hoppers, air slide conveyors, screw conveyors, bucket elevators or belt conveyor discharge points.
How Do Loading Spouts Work?
A loading spout works by extending a telescopic chute downward from the discharge point to the receiving vehicle or loading area. During loading, the inner chute guides the material flow, while the outer sleeve helps contain dust around the discharge zone.
The basic working process is:
✅ The operator or control system lowers the spout to the loading position.
✅ The discharge cone or sealing cone contacts the tanker inlet, truck opening or loading area.
✅ Material flows through the inner chute into the vehicle or stockpile.
✅ Dust is contained by the outer sleeve and can be extracted through a dust collection interface.
✅ A level sensor can detect material level and send a stop signal when the loading point is full.
✅ After loading, the spout retracts to its upper position.
For enclosed tanker loading, the spout usually uses a sealing cone and dust extraction interface. For open truck, ship, barge or stockpile loading, the structure may use dust skirts, flexible covers or longer telescopic travel according to site conditions.
Key Benefits of LVRUI Loading Spouts
✅ Telescopic chute structure for different truck, tanker, railcar, ship or barge loading heights
✅ Dust-controlled loading when used with outer sleeve, sealing cone and dust collector
✅ Helps reduce material spillage around the loading point
✅ Supports faster and more stable dry bulk material loading
✅ Optional level sensor for automatic stop signal
✅ Electric winch, hoist or customized lifting system available
✅ Suitable for cement, fly ash, lime powder, grain, fertilizer and mineral materials
✅ Custom chute travel distance according to site layout
✅ Wear-resistant contact parts available for abrasive materials
✅ Can be integrated with silo discharge systems, conveyors and bag filters
A loading spout is not only a single chute. In real projects, it should be selected together with the silo outlet, feeding equipment, dust collection system, vehicle type, loading capacity and site layout.
Applications of Loading Spouts
LVRUI loading spouts are used in many dry bulk material loading systems.
✅ Cement plant tanker loading
✅ Fly ash bulk truck loading
✅ Lime powder loading station
✅ Grain terminal loading
✅ Fertilizer plant loading
✅ Mineral powder loading
✅ Slag powder loading
✅ Port ship loading system
✅ Barge loading system
✅ Open truck loading point
✅ Railcar loading station
✅ Stockpile loading system
✅ Silo discharge loading point
✅ Conveyor discharge loading point
For cement and fly ash applications, dust control is usually the main concern. For grain, fertilizer and mineral materials, loading efficiency, chute wear and material spillage are also important.
Types of Loading Spouts We Supply
| Equipment Type | Suitable Applications | Typical Materials | Key Features |
|---|---|---|---|
| Enclosed Truck Type | Cement tankers, fly ash tankers, lime powder trucks, mineral powder tankers and enclosed bulk trailers. | Cement, fly ash, lime powder, slag powder, mineral powder and other fine dry powders. | Uses telescopic chute, sealing cone, dust extraction interface and optional level sensor for cleaner tanker loading. |
| Open Truck Type | Open trucks, open railcars, bulk trailers and material loading points where the receiving inlet is not fully enclosed. | Sand, fertilizer, grain, limestone powder, mineral products and granular bulk materials. | Usually equipped with dust skirt, flexible sleeve, lifting system and positioning structure to reduce spillage and improve loading accuracy. |
| Railcar Type | Dry bulk railcar loading stations, cement terminals, fly ash terminals and railway bulk material transfer systems. | Cement, fly ash, lime powder, grain, fertilizer and other dry bulk solids. | Designed for stable positioning, repeatable loading height, dust control and continuous industrial loading operation. |
| Ship Loading Type | Port terminals, cement export terminals, bulk carrier loading systems and high-capacity ship loading applications. | Cement, clinker, fly ash, slag powder, fertilizer, grain and mineral materials. | Requires longer telescopic travel, stronger structure, abrasion-resistant contact parts and reliable dust control for large-scale loading. |
| Barge Type | River terminals, cement terminals, fly ash terminals, inland bulk loading stations and barge transfer systems. | Cement, fly ash, limestone powder, slag powder, fertilizer, grain and dry bulk materials. | Suitable for flexible loading height, moderate to high capacity and controlled discharge into barges with reduced dust emission. |
| Stockpile Type | Open stockpile loading, warehouse loading points, outdoor bulk material discharge and temporary storage areas. | Sand, clinker, limestone, fertilizer, grain, mineral materials and granular bulk solids. | Helps control material drop height, reduce dust spread, improve pile formation and lower material loss during open discharge. |
Different loading spout types should be selected according to the receiving vehicle, material characteristics, loading height, dust control requirement, and automation level. Enclosed truck loading spouts are more suitable for fine powder tanker loading, while open truck, railcar, ship, barge, and stockpile loading spouts are selected according to loading capacity, travel distance, and site layout.
Key Components of a Loading Spout
| Component | Function | Why It Matters |
|---|---|---|
| Telescopic Inner Chute | Guides material from silo outlet or conveyor discharge point into the receiving vehicle or loading area. | Reduces free-fall distance and improves material flow stability. |
| Outer Dust Sleeve | Covers the loading area and helps contain dust during discharge. | Important for cement, fly ash, lime powder and other fine dry powders. |
| Lifting System | Controls extension and retraction of the spout. | Allows the spout to match different loading heights. |
| Discharge Cone or Sealing Cone | Connects the spout with tanker inlet or receiving point. | Helps reduce dust leakage and material spillage. |
| Dust Collection Interface | Connects the spout to a dust collector or filter system. | Useful for fine powders that generate airborne dust. |
| Level Sensor | Detects material level during loading. | Helps avoid overfilling and supports automatic stop signal. |
| Limit Switch | Detects upper and lower position of the spout. | Protects lifting system and improves operation safety. |
| Control Cabinet | Controls lifting, lowering, sensor signals and optional dust collector linkage. | Supports manual, semi-automatic or PLC-compatible operation. |
| Flexible Sleeve Material | Selected according to temperature, abrasion and dust control requirement. | Improves service life and loading stability. |
| Wear-Resistant Contact Parts | Contact parts can be selected according to material abrasiveness. | Important for clinker, sand, fertilizer, minerals and abrasive powders. |
Technical Options
The following options are for preliminary selection only. Final design should be confirmed according to material properties, loading capacity, installation height, vehicle type and site layout.
| Item | Available Options |
|---|---|
| Product Name | Loading spout, telescopic loading chute, loading bellows, bulk loading spout |
| Loading Object | Tanker, open truck, railcar, ship, barge, stockpile |
| Suitable Materials | Cement, fly ash, lime powder, grain, fertilizer, sand, mineral powder, clinker, slag powder |
| Loading Capacity | Customized according to project requirement |
| Chute Travel Distance | Customized according to silo outlet height and vehicle height |
| Chute Structure | Inner cone type, telescopic chute, segmented chute or customized design |
| Dust Control Design | Outer sleeve, sealing cone, dust collection interface, dust skirt |
| Lifting Method | Electric winch, hoist, motorized lifting or customized lifting system |
| Control Mode | Local control, remote control, semi-automatic control, PLC-compatible option |
| Sensor Option | Level sensor, limit switch, position detection, full-load signal |
| Contact Parts | Standard steel or wear-resistant design according to material abrasiveness |
| Installation Position | Under silo, hopper outlet, conveyor discharge point, port loading station |
| Customization | Chute length, flange size, sleeve material, discharge cone, control system and dust connection |
Loading Spout vs Ordinary Open Chute
An ordinary open chute may be enough for simple material discharge, but it is not ideal for dusty dry bulk materials or variable loading height. Loading spouts provide better dust control, loading accuracy and operation stability.
| Comparison Item | Loading Spout | Ordinary Open Chute |
|---|---|---|
| Loading Height Control | Telescopic structure adapts to different loading heights. | Fixed height, less flexible. |
| Dust Control | Outer sleeve and dust collection interface can reduce dust escape. | Dust can spread easily during free fall. |
| Material Spillage | Better control around loading point. | Higher spillage risk. |
| Vehicle Compatibility | Can be designed for tankers, trucks, railcars, ships and barges. | Usually limited to simple discharge. |
| Sensor Option | Level sensor and limit switch available. | Usually no automatic level detection. |
| Loading Efficiency | More stable for industrial bulk loading. | Depends heavily on manual operation and site conditions. |
| Best Use | Cement, fly ash, grain, fertilizer, mineral and powder loading. | Simple, low-dust or temporary discharge. |
Choose a loading spout when the project requires cleaner loading, controlled discharge, adjustable loading height or integration with dust collection equipment.
Suitable Materials
| Material | Application Notes |
|---|---|
| Cement | Commonly used for tanker loading, silo discharge and cement terminal loading. |
| Fly Ash | Requires good dust control and proper sealing around the loading point. |
| Lime Powder | Fine powder material; dust collection and sealing should be considered. |
| Slag Powder | May require wear-resistant contact parts depending on abrasiveness. |
| Grain | Suitable for terminal loading, truck loading and bulk handling systems. |
| Fertilizer | Requires attention to material corrosiveness, abrasion and dust level. |
| Sand | Usually used in open truck, stockpile or ship loading systems. |
| Clinker | Requires stronger structure and wear-resistant contact parts. |
| Mineral Powder | Selection depends on bulk density, abrasiveness and particle size. |
| Limestone Powder | Suitable for powder loading and mineral processing applications. |
For wet, sticky or highly cohesive materials, the material condition should be checked before selecting a loading spout. Poor flowability may affect loading performance.
How to Choose the Right Loading Spout
Selecting the correct loading spout requires more than choosing a chute diameter. The loading object, material properties, installation height, dust control requirement and operation mode all affect the final design.
| Selection Factor | Why It Matters |
|---|---|
| Material Name | Cement, fly ash, grain, fertilizer and minerals have different flow and dust behavior. |
| Bulk Density | Affects loading capacity, chute structure and support design. |
| Required Capacity | Determines chute size, feeding rate and loading efficiency. |
| Loading Object | Tanker, truck, railcar, ship, barge and stockpile require different structures. |
| Silo Outlet Height | Determines chute travel distance and lifting system. |
| Vehicle Inlet Size | Important for tanker loading and sealing cone design. |
| Dust Control Requirement | Fine powders usually need outer sleeve, sealing cone and dust collector interface. |
| Material Temperature | Higher temperature may require special sleeve or contact part design. |
| Abrasion Level | Clinker, sand and mineral materials may need wear-resistant parts. |
| Control Requirement | Manual, semi-automatic, level sensor or PLC-compatible design should be confirmed. |
| Installation Environment | Indoor, outdoor, port terminal and cement plant conditions are different. |
| Maintenance Space | Enough space is needed for inspection, sleeve replacement and lifting system maintenance. |
Information Required for Loading Spout Quotation
To recommend a suitable loading spout, please provide the following project information.
| Required Information | Example |
|---|---|
| Material Name | Cement, fly ash, lime powder, grain, fertilizer, mineral powder |
| Bulk Density | t/m³ or kg/m³ |
| Required Loading Capacity | t/h |
| Loading Object | Tanker, open truck, railcar, ship, barge, stockpile |
| Silo Outlet Height | Distance from outlet to vehicle inlet |
| Chute Travel Distance | Required telescopic extension length |
| Vehicle Inlet Size | Tanker inlet diameter or truck opening size |
| Dust Control Requirement | Sealing cone, outer sleeve, dust collector interface |
| Material Temperature | Normal temperature or high-temperature material |
| Control Requirement | Manual, semi-automatic, level sensor, PLC signal |
| Installation Environment | Indoor, outdoor, port terminal, cement plant |
| Drawing or Photo Available? | Yes / No |
| Destination Country | For packing and shipping reference |
If you are not sure about the exact model, send us your material name, loading capacity, silo outlet height, vehicle type and site photos. LVRUI can help check the suitable chute length, dust sleeve design, lifting system and control option.
System Integration
A loading spout usually works as part of a complete bulk material handling line. The upstream and downstream equipment should be considered together.
Common system combinations include:
✅ Silo + flow control gate + loading spout
✅ Silo + screw conveyor + loading spout
✅ Air slide conveyor + loading spout
✅ Bucket elevator + silo + loading spout
✅ Bag filter + loading spout dust collection interface
✅ Flow control gate + level sensor + loading control system
✅ Cement silo discharge system + tanker loading spout
✅ Port conveyor system + ship loading spout
For cement and fly ash systems, a bag filter or dust collection system is often used near loading points to reduce airborne dust during discharge.
Dust Control and Safety Considerations
Loading dry bulk materials can generate dust, especially when handling cement, fly ash, lime powder, mineral powder or grain. Dust control should be considered during equipment selection and site layout design.
A dust-controlled loading system may include:
✅ Outer dust sleeve
✅ Sealing cone
✅ Dust extraction interface
✅ Bag filter or dust collector
✅ Enclosed feeding point
✅ Proper transfer chute design
✅ Level sensor to prevent overfilling
✅ Regular sleeve and seal inspection
For general workplace guidance on dust hazards, refer to OSHA’s combustible dust information. This reference is for general safety awareness and does not mean a specific loading spout automatically meets any regulatory standard.
Project Cases

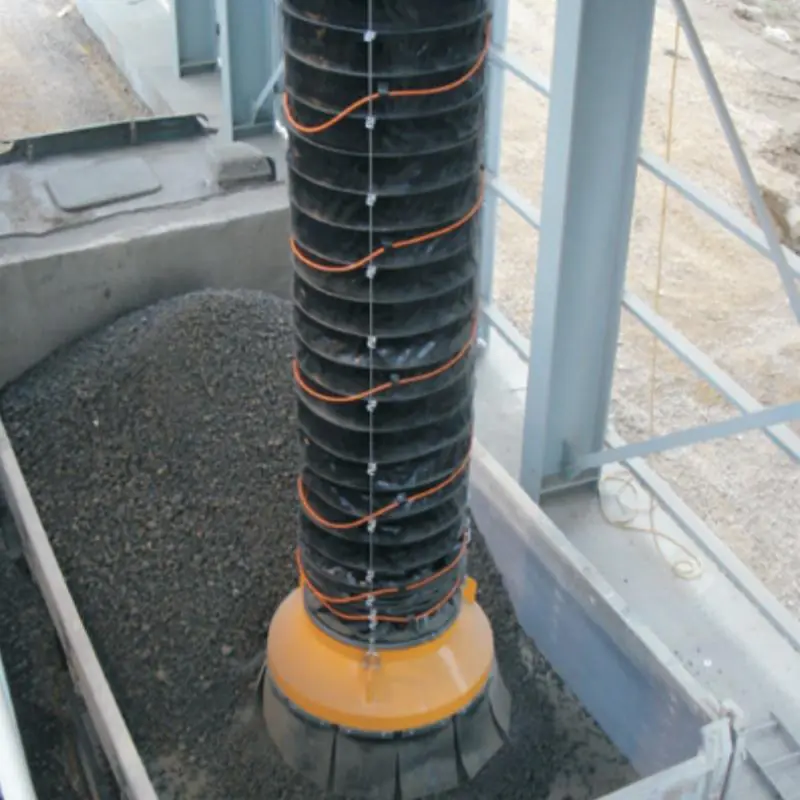

LVRUI telescopic bulk loading systems have been installed in cement plants, bulk storage halls, and port terminals worldwide.
More engineering cases are available upon request. Please contact our technical team for project references and customized solutions.
This dust-controlled system helps guide dry material flow from silo outlets to trucks, railcars, or vessels with less dust escape and more stable discharge performance. It is suitable for cement, mineral powder, grain, fertilizer, and other dry bulk handling projects.
FAQs About Loading Spouts
What are loading spouts used for in bulk material handling?
Loading spouts are used to transfer dry bulk materials from silos, hoppers or conveyors into trucks, tankers, railcars, ships, barges or stockpiles. They help guide material flow, reduce dust escape and improve loading efficiency.
What is the difference between a loading spout and a telescopic loading chute?
In many bulk handling applications, the two terms are similar. A telescopic loading chute usually emphasizes the retractable chute structure, while a loading spout refers to the complete loading device including chute, outer sleeve, lifting system, discharge cone and control options.
What materials can loading spouts handle?
They can handle cement, fly ash, lime powder, grain, fertilizer, sand, slag powder, mineral powder, clinker and other dry bulk materials. The final design depends on material flowability, bulk density, abrasiveness and dust level.
Can this equipment be used for cement tanker loading?
Yes. For cement tanker loading, the system usually uses a telescopic chute, sealing cone, outer dust sleeve, dust extraction interface and optional level sensor to reduce dust escape and avoid overfilling.
Can it be used for ship or barge loading?

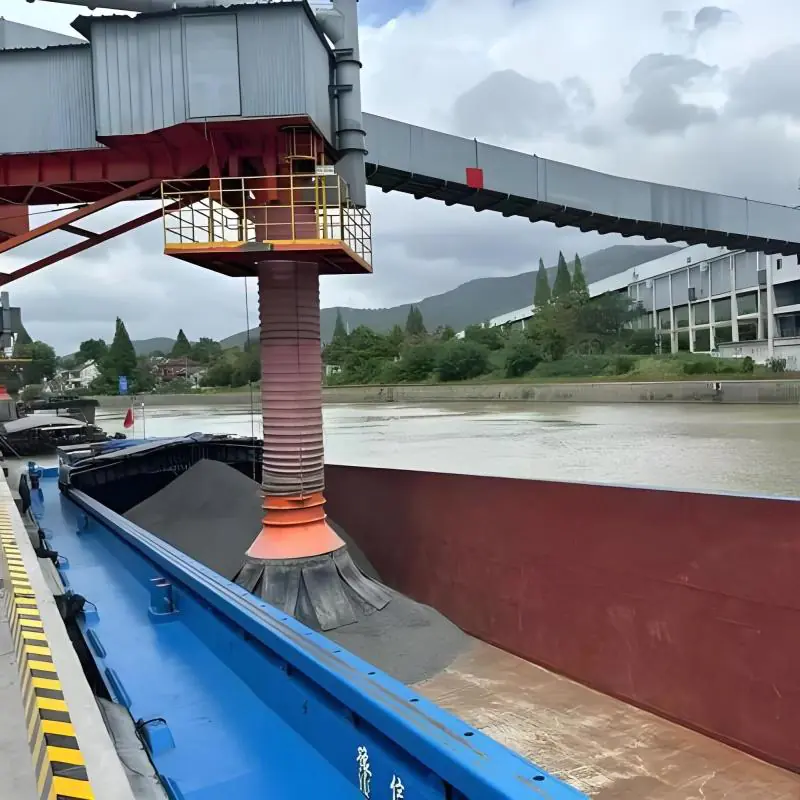

Yes. Ship and barge loading applications usually require longer telescopic travel, stronger structure, higher capacity and reliable dust control. The final design should be based on port layout, loading height, material type and required capacity.
Is a dust collector required?
For fine powders such as cement, fly ash and lime powder, a dust collector is usually recommended near the loading point. The exact requirement depends on material dust level, loading type, site layout and local environmental requirements.
What is the function of the outer dust sleeve?
The outer dust sleeve covers the loading area and helps contain airborne dust during discharge. It is especially important for fine dry powders such as cement, fly ash, lime powder and mineral powder.
What is the function of the level sensor?
The level sensor detects material level during loading and can send a stop signal when the tanker, truck, railcar or loading area is full. This helps reduce overfilling risk and improves operation control.
How do I choose the right model?
To choose the right model, provide the material name, bulk density, loading capacity, loading object, silo outlet height, vehicle inlet size, chute travel distance, dust control requirement and control mode.
Can LVRUI customize the chute length and structure?
Yes. LVRUI can customize chute length, outer sleeve, discharge cone, flange size, lifting system, control cabinet, level sensor, dust collection interface and wear-resistant contact parts according to project requirements.
What information should I provide before quotation?
Please provide material name, loading capacity, loading object, silo outlet height, vehicle inlet size, required chute travel distance, dust control requirement, site photos or drawings and destination country.
How should loading spouts be maintained?
Regular maintenance includes checking the lifting system, outer sleeve, discharge cone, level sensor, limit switches, dust collection interface and wear parts. Damaged sleeves or seals should be replaced in time to keep stable loading performance.
Get a Customized Loading Spout Solution？
Partner with LVRUI for professional bulk material handling solutions and responsive technical support.
✅ Get expert quotation and customized solution within 12 hours
✅ Factory direct supply with strict quality control
✅ Professional engineering support from experienced team
✅ Stable delivery for overseas industrial projects
