Bag Turning Conveyor for 90° Cement Bag Handling
Right-angle bag conveyor for cement packing lines, bag transfer and palletizing systems
Konveyor Pembalik Arah Kantong 90° untuk Jalur Pengemasan dan Palletizing Semen
Overview
LVRUI Bag Turning Conveyor is a motorized right-angle bag handling conveyor designed to change the conveying direction of filled bags by 90° in cement packing lines, building material bagging lines and palletizing systems.
Unlike a bag flipper or bag inverter, this equipment changes the conveying direction without flipping or damaging the bag. It keeps cement bags, fly ash bags, mortar bags and other powder material bags stable during transfer, helping downstream belt conveyors, bag counters, flatteners and palletizers work more smoothly.
For cement plants and building material factories, a reliable bag turning conveyor can reduce bag misalignment, manual handling, transfer impact, bag deformation and production bottlenecks in automated packing and palletizing lines.
Right-angle bag conveyors are widely used in industrial conveying systems following international material handling standards.
What Is a Bag Turning Conveyor?
A bag turning conveyor is an automated bag handling conveyor used to change the direction of filled bags, usually by 90°, between packing machines, belt conveyors, bag flatteners, check weighers and palletizing systems.
In cement plants, it is commonly installed after a cement packing machine or bag discharge conveyor and before downstream transfer conveyors or palletizers. Its main function is to keep bag movement stable, control bag orientation and reduce manual intervention in continuous bag handling lines.
Bag Turning Conveyor vs Bag Flipper vs Bag Kicker
A bag turning conveyor changes the conveying direction of filled bags while keeping the bag stable on the conveyor surface.
A bag flipper or bag inverter is used when the bag must be flipped or inverted for a specific process.
A bag kicker usually pushes or diverts the bag from one conveyor direction to another, often at 90°.
For cement bag handling lines where the goal is stable right-angle transfer without bag flipping, a motorized bag turning conveyor is usually the preferred solution.
Key Features & Benefits
✅ 90° right-angle bag transfer for cement packing and palletizing lines
✅ Stable bag orientation without flipping, inverting or damaging the bag
✅ Suitable for 25 kg, 40 kg and 50 kg cement bags and powder material bags
✅ Motorized conveying structure for continuous industrial operation
✅ Smooth connection with packing machines, belt conveyors, bag flatteners, check weighers and palletizers
✅ Helps reduce bag misalignment, transfer impact, bag deformation and manual handling
✅ Customizable conveyor width, length, height, speed, frame material and inlet/outlet direction
✅ Suitable for new packing lines and existing cement plant conveyor upgrades

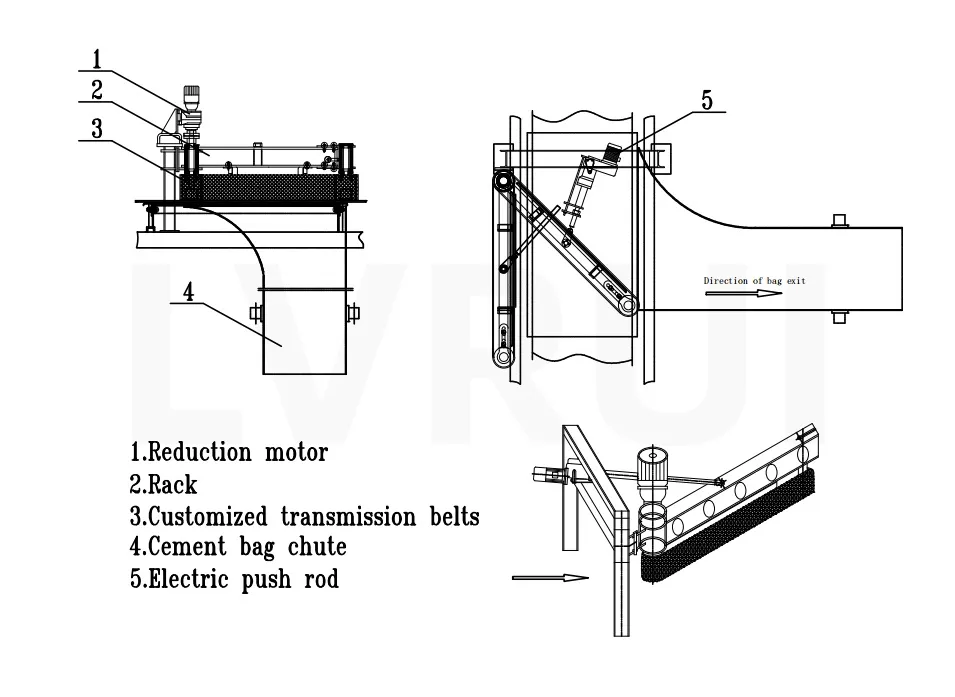

Working Principle
Cement bag turning system uses a powered conveying mechanism to guide bags through a controlled curved or angled path. As bags enter the conveyor, they are supported and driven forward while gradually changing direction—typically 90 degrees—without rotating or inverting the bag body.
This controlled motion maintains the bag’s original orientation, making it ideal for downstream processes such as bag counting, stacking, and transfer to belt conveyors.
Why Bag Turning Conveyors Are Critical in Cement Packing Lines
In cement packing lines, filled bags must move continuously from the packing machine to downstream conveyors, bag counters, flatteners, palletizers or truck loading areas. If bag direction is not controlled, the line may suffer from unstable transfer and lower automation efficiency.
Common problems include:
✅ Bag skewing or misalignment at conveyor transfer points
✅ Bag collision and deformation during right-angle transfer
✅ Unstable bag position before bag flattening or palletizing
✅ Manual correction required before stacking
✅ Reduced palletizing efficiency and irregular pallet patterns
✅ Higher risk of cement bag breakage or leakage
✅ Production bottlenecks in high-capacity packing lines
A properly designed bag turning conveyor keeps bag movement stable and synchronized, helping the whole cement bag handling system run more efficiently.
Typical Applications
✅ Cement packing line discharge conveyor connection
✅ 90° transfer between cement bag conveyors
✅ Bag transfer before bag flattening conveyor
✅ Bag orientation before automatic palletizing system
✅ Cement bag counting and stacking line
✅ Mortar, gypsum, fly ash and building material bag handling lines
✅ New packing line installation and existing conveyor line modification
✅ Industrial bag handling systems for 25 kg, 40 kg and 50 kg bags
How to Choose the Right Bag Turning Conveyor
Choosing the right bag turning conveyor depends on the bag type, bag weight, line speed, turning direction and downstream automation requirements.
Before quotation, customers should confirm:
✅ Bag material: paper bag, woven bag, plastic bag or valve bag
✅ Bag weight: 25 kg, 40 kg, 50 kg or customized
✅ Bag size: length, width and thickness after filling
✅ Line capacity: bags per hour or bags per minute
✅ Turning direction: left turn, right turn or custom layout
✅ Upstream equipment: packing machine, discharge conveyor or bag closing conveyor
✅ Downstream equipment: belt conveyor, bag flattener, check weigher, palletizer or loading area
✅ Site layout: conveyor height, available space and installation direction
With these details, LVRUI can design a suitable right-angle bag conveyor for stable transfer and long-term operation.
Handled Materials
LVRUI bag turning conveyors are suitable for filled industrial bags used in cement, building materials, dry mortar, fly ash, gypsum, lime, chemical powder and granular material handling.
✅ Cement bags
✅ Fly ash bags
✅ Gypsum powder bags
✅ Dry mortar bags
✅ Lime powder bags
✅ Mineral powder bags
✅ Chemical powder bags
✅ Granular material bags
The final conveyor design should be selected according to bag size, bag weight, bag material, line speed, transfer direction and downstream equipment.
Technical Parameters – Customizable
All bag turning systems are engineered based on conveying speed calculations, bag size parameters, and production line synchronization requirements.
| Parameter | Description |
|---|---|
| Bag Type | Valve bags / Open-mouth bags |
| Turning Angle | 90° (custom angles available) |
| Drive Type | Motorized |
| Conveyor Type | Bag turning conveyor |
| Capacity | According to bag size & line speed |
| Application | Cement bag handling & palletizing |
System-Level Engineering Insight
In automated cement packaging systems, bag orientation control is a critical factor affecting production efficiency. Bag turning conveyors provide controlled directional change without rotating or damaging the bag, ensuring stable flow and consistent downstream automation performance.
FAQs About Bag Turning Conveyor
What is a bag turning conveyor?
A bag turning conveyor is an automated bag handling conveyor used to change the conveying direction of filled bags, usually by 90°, between packing machines, belt conveyors, bag flatteners and palletizing systems. It helps keep bag transfer stable and reduces manual handling.
What is a right-angle bag conveyor used for?
A right-angle bag conveyor is used to transfer filled bags from one conveyor direction to another, typically at 90°. It is commonly used in cement packing lines, building material bagging lines and palletizing systems where space layout requires a controlled direction change.
Does a bag turning conveyor flip or invert the bag?
No. The LVRUI bag turning conveyor is mainly designed for right-angle direction change without flipping or inverting the bag. If the process requires the bag to be fully flipped or inverted, a bag flipper or bag inverter should be considered instead.
What is the difference between a bag turning conveyor and a bag kicker?
A bag turning conveyor uses controlled conveying movement and guide structure to change bag direction smoothly. A bag kicker usually pushes or diverts bags from one conveyor direction to another. The best choice depends on bag weight, speed, required orientation and line layout.
Can the bag turning conveyor be integrated with belt conveyors?
Yes. Bag turning conveyors are commonly installed between packing machines, belt conveyors, bag flatteners, check weighers and palletizers. They can be customized according to conveyor height, bag size, line speed and inlet/outlet direction.
What bag sizes and weights can the bag turning conveyor handle?
The bag turning conveyor can be customized for 25 kg, 40 kg, 50 kg and other industrial bag sizes. The final design depends on bag length, width, thickness, material, weight and conveying speed.
Is this conveyor suitable for continuous cement packing lines?
Yes. LVRUI bag turning conveyors are designed for continuous cement bag handling, packing line transfer and palletizing line operation. Heavy-duty frame design, motorized drive and stable conveying speed help support long-term industrial operation.
What information is needed for a bag turning conveyor quotation?
Customers should provide bag size, bag weight, bag material, line capacity, turning direction, conveyor height, upstream equipment, downstream equipment and site layout. These details help LVRUI design a suitable 90° bag turning conveyor solution.
