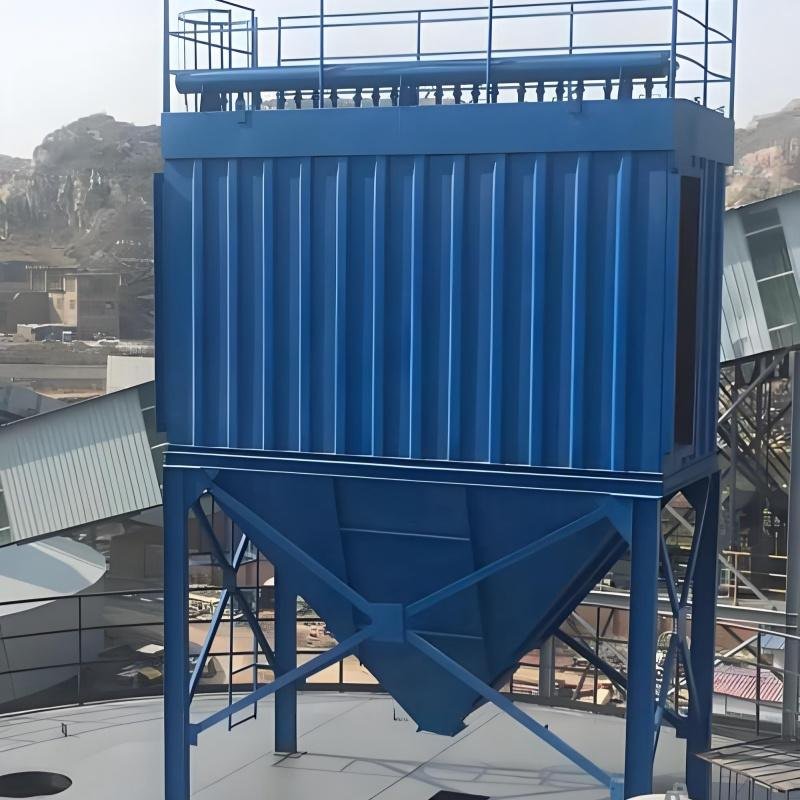

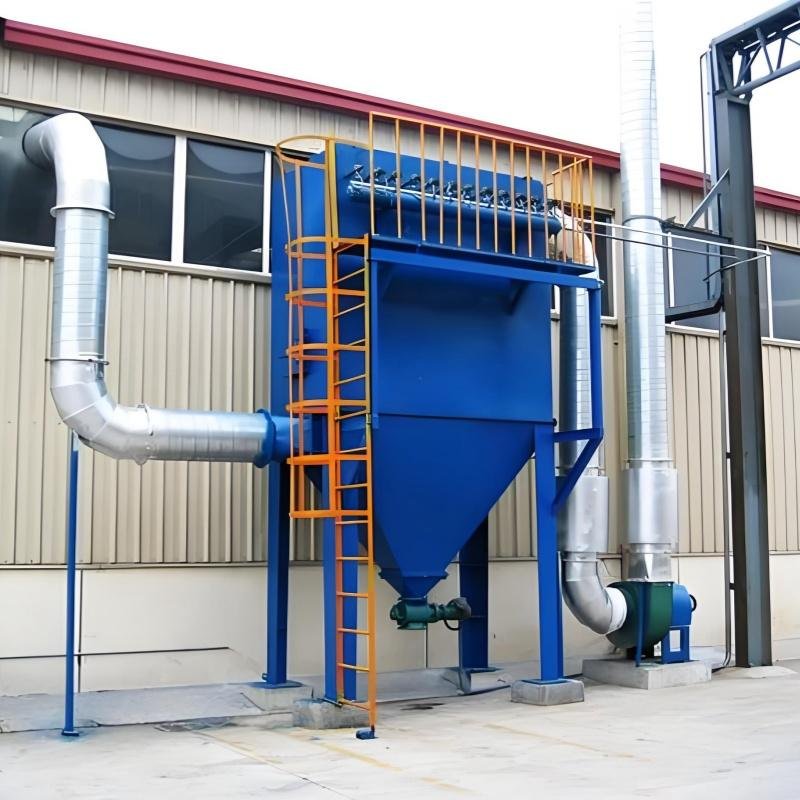

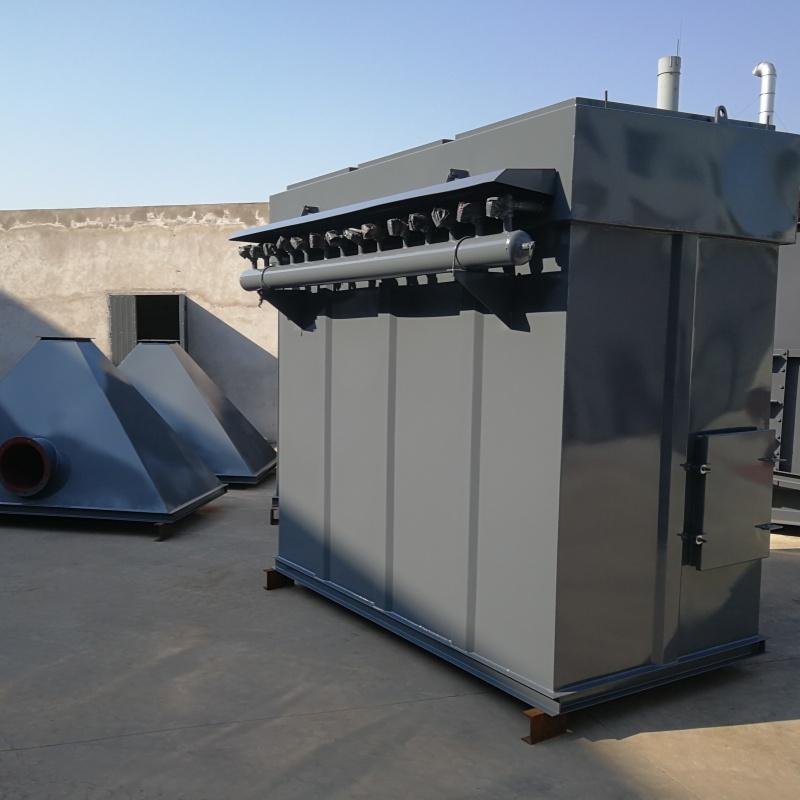

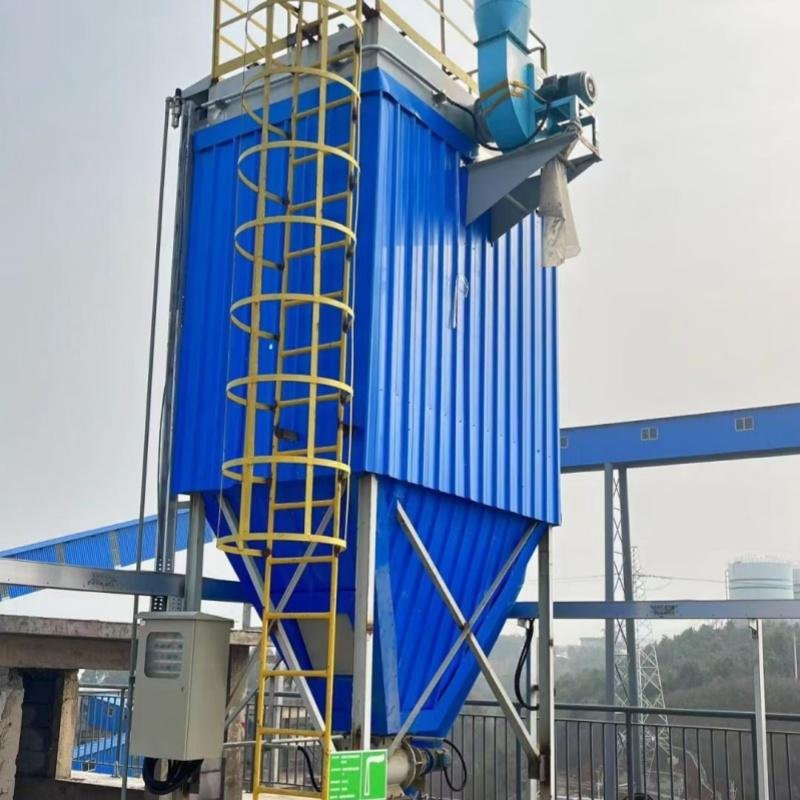

Pulse Jet Dust Collector for Industrial Dust Filtration
(Kolektor Debu Pulse Jet untuk Filtrasi Debu Industri)
High-Efficiency Baghouse Dust Collector for Cement, Lime & Powder Processing
Overview
Pulse jet dust collectors use high-pressure compressed air to clean filter bags automatically, ensuring stable filtration efficiency and continuous operation. As a widely used pulse jet baghouse dust collector, this system is designed for cement plants, lime processing, bulk material conveying systems, crushers, and industrial dedusting lines.
With high dust collection efficiency, low pressure drop, and long filter bag service life, the pulse jet dust collector provides reliable dust filtration performance in demanding industrial environments while meeting strict emission standards.
For upstream dust separation, see our cyclone dust collector solutions.
Features
✅ Automatic pulse-jet cleaning for continuous filtration
✅ Low pressure drop and high dust removal efficiency
✅ Wear-resistant filter bags for long service life
✅ Modular design for easy installation and maintenance
✅ Suitable for fine, dry, and industrial powder dust
✅ Stainless steel or carbon steel housing available
✅ Stable 24/7 industrial operation
Designed as an industrial pulse jet dust collector suitable for continuous operation in harsh working conditions.
Applications
✅ Cement, lime & gypsum processing
✅ Silo & hopper ventilation
✅ Crushers and screening machines
✅ Bulk loading and unloading systems
✅ Pneumatic conveying dust removal
✅ Industrial dedusting lines
These pulse jet dust collector applications are commonly found in cement plants, lime processing facilities, power plants, and bulk material handling systems where reliable industrial dust filtration is required.
Advantages
✅ 99% dust collection efficiency
✅ Supports continuous 24-hour operation
✅ Fully sealed and environmentally friendly
✅ Simple structure and easy maintenance
✅ Reduces dust emissions & improves workplace safety
✅ Durable construction for industrial use
Reference:
Baghouse Dust Collection Basics – U.S. Environmental Protection Agency (EPA)
Technical Specifications
The following pulse jet dust collector specifications are provided for reference. Custom airflow capacity, filter area, and configuration are available upon request.
| Model | HMC-32 | HMC-48 | HMC-64 | HMC-80 | HMC-96 | HMC-112 |
|---|---|---|---|---|---|---|
| Air Volume Treated (m³/h) | 1500–2100 | 2100–3200 | 2900–4300 | 4000–6000 | 5200–7000 | 6000–9000 |
| Total Filter Area (m²) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filtering Velocity (m/min) | 1.00–1.50 | 1.00–1.50 | 1.00–1.50 | 1.10–1.70 | 1.20–1.70 | 1.20–1.80 |
| Number of Filter Bags (pcs) | 32 | 48 | 64 | 80 | 96 | 112 |
| Inlet Air Temperature (°C) | ≤ 120°C | ≤ 120°C | ≤ 120°C | ≤ 120°C | ≤ 120°C | ≤ 120°C |
| Equipment Resistance (Pa) | ≤ 1200 | ≤ 1200 | ≤ 1200 | ≤ 1200 | ≤ 1200 | ≤ 1200 |
| Inlet Dust Concentration (g/m³) | < 200 | < 200 | < 200 | < 200 | < 200 | < 200 |
| Outlet Dust Emission (mg/m³) | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 |
| Compressed Air Pressure (MPa) | 0.5–0.7 | 0.5–0.7 | 0.5–0.7 | 0.5–0.7 | 0.5–0.7 | 0.5–0.7 |
| Gas Consumption (m³/min) | 0.10 | 0.14 | 0.20 | 0.24 | 0.29 | 0.34 |
| Bearing Negative Pressure (Pa) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Number of Pulse Valves (pcs) | 4 | 6 | 8 | 10 | 12 | 14 |
| Electric Power of Fan (kW) | 1.5 | 3.0 | 3.0 | 5.5 | 5.5 | 7.5 |
| Weight – A Type (with ash bucket) (kg) | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 |
| Weight – B Type (without ash bucket) (kg) | 1220 | 1470 | 1670 | 2150 | 2540 | 2880 |
*Technical specifications are for reference only and can be customized upon request.
FAQs About Pulse Jet Dust Collector
How does a pulse jet dust collector work?
A pulse jet dust collector works by using short bursts of compressed air to clean the filter bags. Dust is captured on the bag surface, while periodic pulse-jet cleaning removes accumulated dust, maintaining stable airflow and filtration efficiency.
What industries commonly use pulse jet baghouse dust collectors?
Pulse jet baghouse dust collectors are widely used in cement plants, lime processing, power generation, chemical processing, and bulk material handling systems where continuous industrial dust filtration is required.
What is the difference between a pulse jet dust collector and a mechanical shaker type?
Compared with mechanical shaker dust collectors, pulse jet dust collectors allow continuous operation during cleaning, offer higher filtration efficiency, and are better suited for high dust load and industrial applications.
What dust emission level can a pulse jet dust collector achieve?
A properly designed pulse jet dust collector can achieve outlet dust emissions of ≤50 mg/m³ or lower, depending on filter media and operating conditions, meeting common industrial environmental standards.
Can the pulse jet dust collector be customized?
Yes. Air volume, filter bag material, housing design, and discharge configuration can be customized based on specific process requirements and site conditions.
