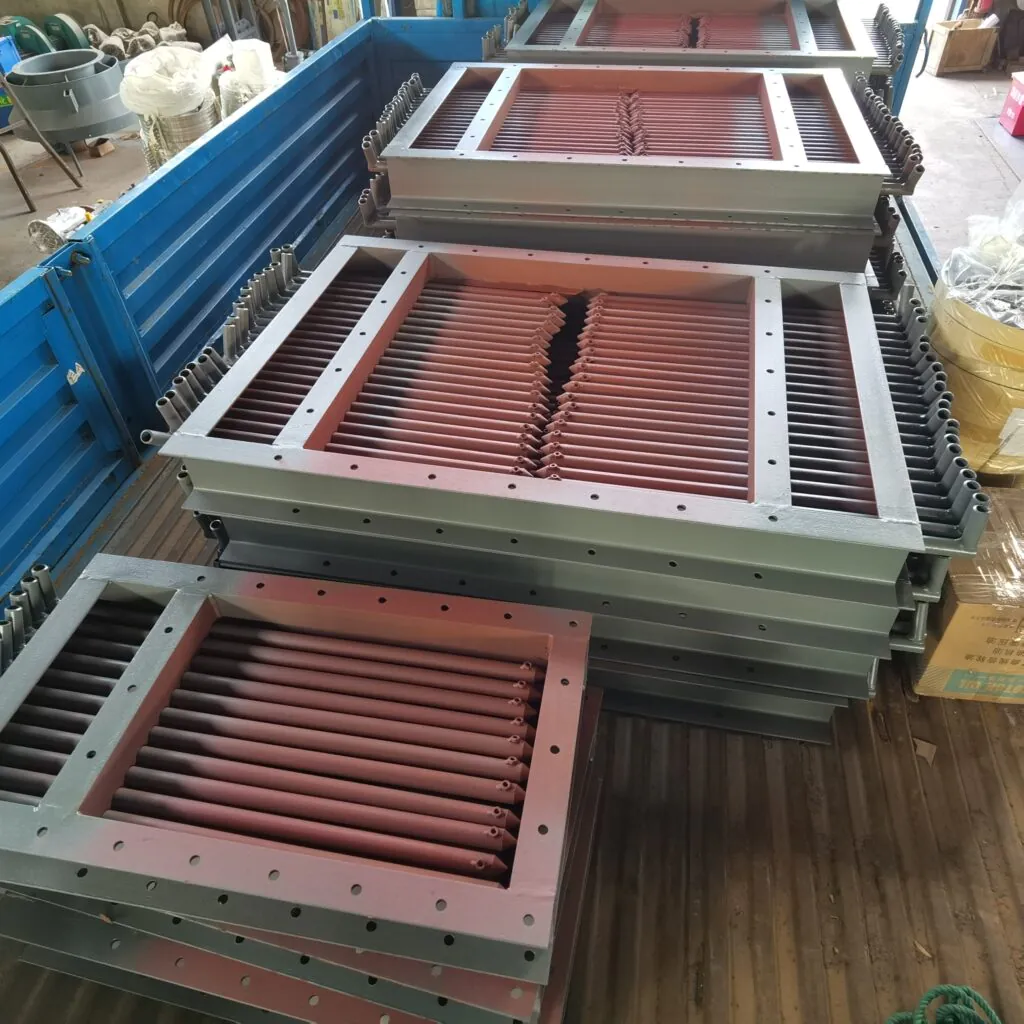

Rod Gate for Silo and Hopper Discharge
(Pintu Geser Batang untuk Pengosongan Silo dan Hopper)
Reliable Slide Gate Valve for Bulk Material Handling
Overview
Rod gate valves are heavy-duty slide gate valves installed at silo and hopper outlets to regulate and isolate bulk material discharge. Designed for powder and granular materials such as cement, fly ash, clinker, slag, sand, and minerals, rod-operated gates provide stable flow control with minimal leakage and low maintenance requirements.
The reinforced frame structure and multi-rod driving mechanism ensure smooth opening and closing, even under high material load. Rod type gate valve solutions are widely applied in cement plants, mining operations, steel mills, power plants, and bulk material handling systems requiring reliable and controlled discharge.
For related bulk material handling equipment, you may also explore:
Bucket Elevator for Bulk Materials – vertical conveying solution for powders and granules
Silo Flow Control Gate Valve Solutions – precise discharge control for silo and hopper outlets
Features
✅ Heavy-duty welded frame with reinforced rod structure
✅ Tight sealing design to reduce material leakage and dust escape
✅ Smooth rod-operated opening and closing without material jamming
✅ Available in manual, electric, or pneumatic drive types
✅ Suitable for powder and granular bulk materials
✅ Designed for silo outlets, hopper discharge, and chute applications
✅ Low maintenance requirements and long service life
✅ Customizable sizes and materials for different operating conditions
Applications
Rod gates are widely used in:
✅ Cement and clinker silos
✅ Coal storage and limestone hoppers
✅ Mining & aggregate feeding systems
✅ Fly ash storage plants
✅ Bulk powder discharge lines
✅ Industrial furnace feeding
✅ Grain and granular product handling
✅ Dry bulk material conveying lines
Rod gate valves are commonly used in cement and clinker silos, limestone hoppers, fly ash storage systems, aggregate feeding lines, and bulk material conveying systems where controlled discharge and isolation are required.
Learn more about bulk material handling principles on Wikipedia.
Technical Specifications
| Item | LRB200 | LRB250 | LRB300 |
|---|---|---|---|
| Opening Size (mm) | 200×200 | 250×250 | 300×300 |
| Body Material | Carbon Steel / Stainless Steel | Carbon Steel / Stainless Steel | Carbon Steel / Stainless Steel |
| Drive Method | Manual / Electric / Pneumatic | Manual / Electric / Pneumatic | Manual / Electric / Pneumatic |
| Applicable Materials | Powder & Granular Material | Powder & Granular Material | Powder & Granular Material |
Technical specifications may vary depending on material characteristics, discharge height, and installation layout. LVRUI rod gate valves can be customized for specific bulk material handling requirements.
FAQs About Rod Gate Valve
What is a rod gate valve used for?
A rod gate valve is used to control, isolate, or regulate the discharge of bulk materials from silos, hoppers, bins, and chutes. It is especially suitable for powder and granular materials such as cement, fly ash, clinker, and minerals.
What is the difference between a rod gate and a standard slide gate valve?
A rod gate valve uses a multi-rod reinforced structure to support the sliding plate, providing better strength and stability under heavy material load. Standard slide gate valves typically rely on a single plate structure and are more suitable for lighter-duty applications.
Can rod gate valves handle abrasive bulk materials?
Yes. Rod gate valves can be equipped with wear-resistant liners and reinforced sliding components, making them suitable for abrasive materials such as clinker, fly ash, sand, and mineral powders.
Are rod gate valves suitable for automated bulk material handling systems?
Yes. Rod gate valves are available with electric or pneumatic actuators and can be integrated into automated bulk material handling systems, working together with conveyors, feeders, and dust collection equipment.
