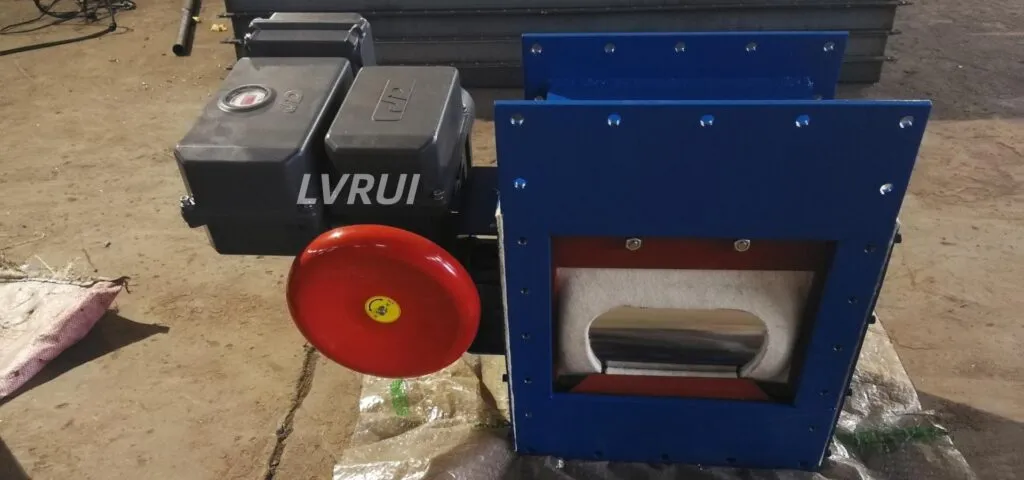

Reliable and Durable Electric Flow Control Valve for Cement, Fly Ash, Lime, and Bulk Powders
（Katup Kontrol Aliran Listrik B500 yang Andal untuk Semen, Abu Terbang, Kapur, dan Serbuk）
Introduction
The B500 electric flow control valve is an essential component for bulk powder handling systems, providing accurate flow regulation for cement, fly ash, lime, and other powders. Compared to pneumatic systems, electric valves offer precision, stability, and integration with automated control systems. Using a B500 valve ensures dust-free operation, reduced material loss, and improved efficiency in cement silos, hoppers, and air slide conveyors.
Key Features
- Electric actuator ensures automatic and precise flow control
- High-precision discharge adjustment minimizes material loss
- Reliable sealing prevents dust leakage, enabling safe operations
- Supports remote control and PLC integration for automation
- Compatible with cement, fly ash, lime powder, and granular materials
- Heavy-duty construction ensures long service life
- Optional limit switches, stroke control, and position feedback
- Seamless integration with silos, hoppers, and screw conveyor feeding points
Applications
- Cement silos and storage systems
- Fly ash transfer and storage
- Limestone powder feeding
- Clinker discharge units
- Automated cement plants with PLC integration
- Industrial mixing stations handling multiple powders
- Dust collection and pneumatic conveying systems
Working Principle
The B500 electric flow control valve uses an electric actuator to open or close the gate, controlling powder discharge with high precision. Key steps:
- Motor rotates transmission mechanism
- Gate position adjusts (open/close/partial)
- Flow rate is regulated automatically
- System maintains stable powder flow, preventing blockages

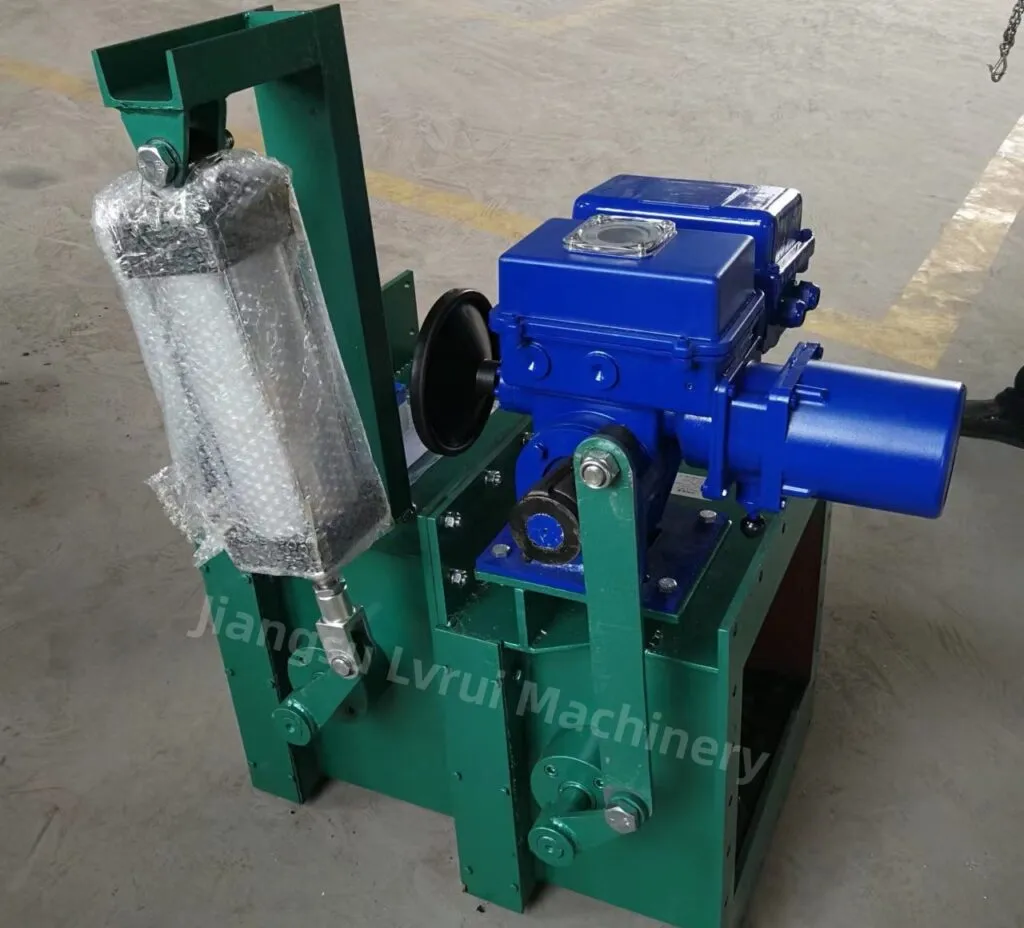

- Integrates with air slide conveyors and automated cement plants
Technical Specifications
| Parameter | Specification |
|---|---|
| Drive Type | Electric Motor |
| Voltage | 220V / 380V / Custom |
| Material | Carbon Steel |
| Sealing Type | Wool Felt / Metal Seal |
| Control Mode | Manual / Automatic / PLC |
| Temperature Range | -20°C to +200°C |
| Application Material | Cement, Fly Ash, Lime, Limestone Powder |
| Installation Position | Silo / Hopper / Bin |
Advantages
- Adjustable and precise flow control
- Stable operation without manual adjustment
- Dust-free operation prevents contamination
- Heavy-duty design for long service life
- Real-time monitoring and automation support
- Low maintenance design reduces operational costs
- Compatible with industrial silos, hoppers, and conveyors
FAQs About B500 electric flow control valve
❓ What is the main function of a B500 electric flow control valve?
The B500 electric flow control valve is designed to precisely regulate the discharge of bulk materials such as cement, fly ash, lime, and other powders. It ensures stable flow, dust-free operation, and accurate control in automated material handling systems.
Fungsi utama katup kontrol aliran listrik B500 adalah untuk mengatur keluaran bahan curah seperti semen, abu terbang, kapur, dan bubuk lainnya secara presisi, memastikan aliran stabil, bebas debu, dan kontrol akurat pada sistem penanganan bahan otomatis.
❓ Why choose a B500 electric flow control valve over a pneumatic valve?
Compared to pneumatic valves, the B500 offers precise positioning, adjustable speed, and seamless integration with PLC systems, making it ideal for automated cement plants and high-demand industrial applications.
Dibandingkan dengan katup pneumatik, B500 menawarkan posisi presisi, kecepatan yang dapat disesuaikan, dan integrasi lancar dengan sistem PLC, cocok untuk pabrik semen otomatis dan aplikasi industri dengan permintaan tinggi.
❓ How can the B500 valve be integrated with PLC systems?
The B500 valve is compatible with PLC and automated control systems. It supports remote operation, position feedback, and precise flow regulation, allowing full automation of cement or bulk material processes.
Katup B500 kompatibel dengan sistem PLC dan kontrol otomatis. Mendukung operasi jarak jauh, umpan balik posisi, dan pengaturan aliran presisi untuk otomatisasi penuh proses semen atau bahan curah.
❓ What materials can the B500 valve handle?
The B500 valve is suitable for cement, fly ash, limestone powder, clinker fines, and other dry bulk materials. Options for carbon steel or stainless steel are available for abrasive, high-temperature, or corrosive materials.
Katup B500 cocok untuk semen, abu terbang, bubuk kapur, klinker, dan bahan curah kering lainnya. Tersedia opsi baja karbon atau stainless untuk bahan abrasif, suhu tinggi, atau korosif.
❓ Is customization available for the B500 electric flow control valve?
Yes, LVRUI provides customized B500 valves based on installation position, inlet size, material characteristics, sealing requirements, and automation level. OEM sizes and special designs are available upon request.
Ya, LVRUI menyediakan katup B500 yang dapat disesuaikan berdasarkan posisi pemasangan, ukuran inlet, karakteristik bahan, persyaratan segel, dan tingkat otomatisasi. Ukuran OEM dan desain khusus tersedia atas permintaan.
❓ How do I determine the right B500 valve size for my cement plant?
The correct B500 valve size depends on bulk material type, flow rate, and silo or hopper dimensions. Measure the maximum required throughput and consult the B500 specification chart to ensure precise and stable discharge.
Ukuran katup B500 yang tepat tergantung pada jenis bahan curah, laju aliran, dan dimensi silo atau hopper. Ukur throughput maksimum yang dibutuhkan dan lihat tabel spesifikasi B500 untuk memastikan keluaran yang presisi dan stabil.
❓ What maintenance is required for the B500 electric flow control valve?
Regular maintenance includes checking the actuator operation, cleaning valve surfaces, inspecting the sealing system, and verifying electrical connections. Proper maintenance ensures reliable performance, prevents dust leakage, and extends service life.
Perawatan rutin mencakup pengecekan operasi aktuator, membersihkan permukaan katup, memeriksa sistem segel, dan memverifikasi sambungan listrik. Perawatan yang tepat memastikan kinerja yang handal, mencegah kebocoran debu, dan memperpanjang umur pakai.
CTA Section
Looking for a B500 electric flow control valve for your cement plant or bulk powder system? Contact LVRUI for factory-direct supply, expert engineering support, and fast delivery.
📧 info@lvrui-conveyor.com | 🌐 lvrui-conveyor.com
Versi Singkat Bahasa Indonesia
Panduan ini menjelaskan B500 electric flow control valve untuk mengatur aliran semen, abu terbang, kapur, dan serbuk lainnya secara presisi. Artikel membahas fitur utama, spesifikasi teknis, instalasi, pemeliharaan, dan aplikasi praktis di pabrik semen, silo, hopper, dan sistem konveyor udara di Indonesia dan Asia Tenggara, memastikan aliran stabil dan operasi bebas debu.
