（EN）How a Valve-Type Lump Breaker Solves Cement Silo Blockage, Bridging, and Hardened Clinker Problems
（ID）Bagaimana Katup Penghancur Gumpalan Mengatasi Penyumbatan Silo Semen, Bridging, dan Gumpalan Keras
1. Why Cement Silos Suffer from Lump Formation & Blockage
Cement lump breaking valve solutions are widely used in cement silos to prevent material agglomeration, clinker formation, and flow blockage, especially in humid or long-term storage conditions.
Common problems at the silo bottom include:
✔ Arching and bridging above the outlet
✔ Rat-holing where only a narrow flow channel forms
✔ Hardened cement lumps falling into downstream conveyors
✔ In many cases, these lumps are partially composed of cement clinker, which becomes highly abrasive and difficult to break once compacted under silo pressure.
Traditional discharge devices such as slide gates or flap valves are not designed to break solidified cement lumps. Once hardened material accumulates, it can easily block air slide conveyors, screw conveyors, or rotary valves, leading to costly downtime and manual cleaning.
2. What Is a Cement Lump Breaking Valve?

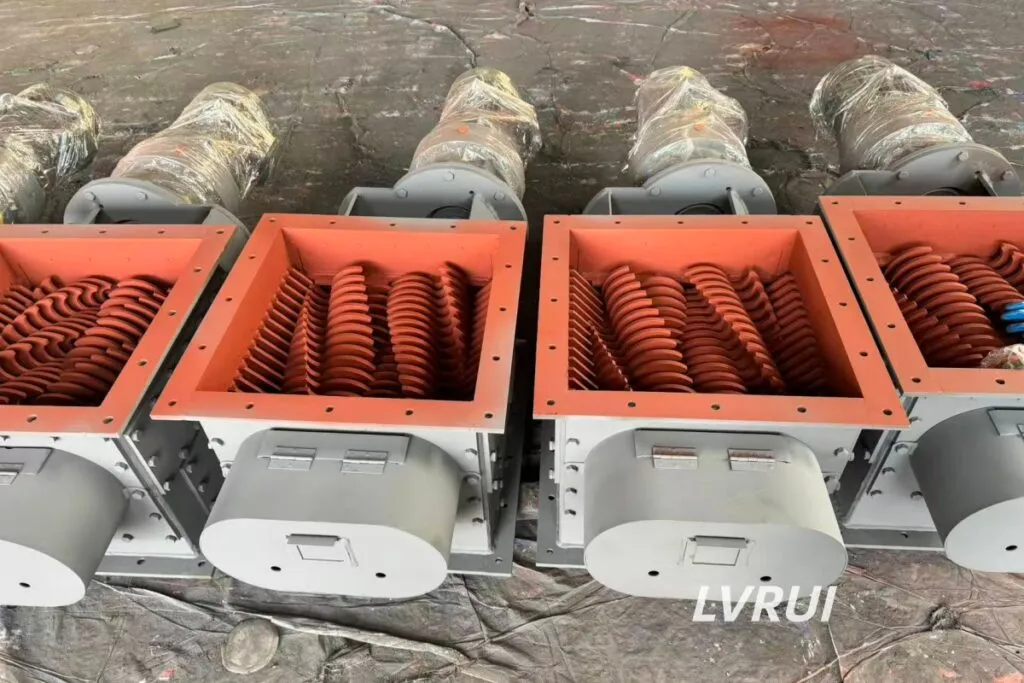

A cement lump breaking valve is a compact, integrated device installed directly under the silo outlet. It combines two critical functions:
- Flow control (like a standard discharge valve)
- Mechanical de-agglomeration (like a twin-shaft lump breaker)
Compared with conventional downstream lump breakers such as Lump Breakers for Cement Silo Discharge, this valve-type design performs real-time crushing at the discharge point, preventing hardened cement from traveling into sensitive conveying equipment.
Key components typically include:
✔ Heavy-duty twin shafts with hardened teeth
✔ High-torque gearbox and electric motor
✔ Rigid housing with flanged inlet and outlet
✔ Inspection covers for easy maintenance
✔ Optional speed control for different material conditions
This integrated structure makes the cement lump breaking valve especially suitable for retrofitting existing silo discharge systems without major layout changes.
3. How the Valve-Type Lump Breaker Works
When cement begins discharging from the silo, the material enters the lump breaking valve chamber. The twin shafts rotate in opposite directions, gripping and crushing oversized lumps, set cement blocks, and clinker fragments.
The operating sequence is as follows:
✔ Cement flows by gravity into the valve inlet
✔ Hardened lumps are captured between the rotating teeth
✔ Lumps are crushed into manageable particle sizes
✔ Conditioned material exits smoothly into the conveyor below
Because crushing occurs continuously during discharge, the system prevents large agglomerates from ever reaching sensitive equipment such as air slide conveyors, screw conveyors, or rotary feeders. This significantly reduces the risk of downstream clogging and mechanical overload.
4. Structural Design Features for Cement Applications
A cement lump breaking valve is engineered specifically for abrasive and cohesive powder environments. Typical design highlights include:
✔ Twin-shaft crushing mechanism
Provides strong shearing force while maintaining controlled throughput.
✔ Wear-resistant teeth and liners
Manufactured from alloy steel or hardened carbon steel to resist abrasion from cement clinker.
✔ Compact vertical layout
Minimizes installation height and fits easily under existing silo cones.
✔ High-torque drive system
Ensures reliable operation even when handling hardened cement lumps.
✔ Sealed bearing arrangement
Prevents fine cement dust from entering bearing housings and prolongs service life.
✔ Optional frequency inverter
Allows speed adjustment to match different flow rates and material hardness.
These features make the valve-type lump breaker a robust and long-lasting solution for cement silo discharge systems. For higher-capacity or downstream crushing needs, plants may also integrate an Industrial Lump Breaker for Bulk Material Handling as a complementary conditioning device.
5. Typical Application Scenarios
Cement lump breaking valves are widely used in:
✔ Cement silo bottom discharge
✔ Clinker silo outlets
✔ Raw meal and fly ash silos
✔ Gypsum and additive storage silos
✔ Bulk bag unloading stations
✔ Ship unloader and truck loading hoppers
They are especially valuable in plants located in humid climates, where cement agglomeration and setting occur more frequently. In retrofit projects, installing a lump breaking valve under the silo outlet is often a faster and more economical solution than redesigning the entire discharge system.
6. Benefits of Using a Cement Lump Breaking Valve
Compared with conventional discharge valves and standalone lump breakers, a cement lump breaking valve offers several practical advantages:
✔ Prevents silo outlet blockage and arching
✔ Eliminates hardened cement lumps before they reach conveyors
✔ Protects air slide conveyors, screw conveyors, and rotary valves
✔ Improves overall material flow stability
✔ Reduces manual cleaning and unplanned downtime
✔ Extends the service life of downstream equipment
✔ Saves installation space and structural modification costs
By stabilizing cement flow and conditioning material at the source, this solution significantly improves the reliability of bulk cement handling systems. In applications requiring precise discharge regulation, the cement lump breaking valve can also work alongside a Flow Control Valve for Cement & Bulk Material Handling to achieve optimal throughput control.
7. Selection Tips for Cement Plants
When selecting a cement lump breaking valve, engineers should consider:
✔ Silo outlet diameter and required throughput
✔ Maximum lump size and material hardness
✔ Abrasiveness of cement and clinker
✔ Available installation height
✔ Required motor power and torque
✔ Integration with existing control systems
Choosing a unit with sufficient torque reserve and wear-resistant materials is critical for long-term performance in cement applications.
Proper installation of a lump breaker for cement silos significantly improves system reliability and reduces operational downtime.
Indonesian Short Version
Dalam sistem silo semen, penggumpalan dan pengerasan material sering menyebabkan penyumbatan dan gangguan aliran. Cement lump breaking valve adalah solusi efektif yang menggabungkan fungsi katup aliran dan penghancur gumpalan dalam satu unit kompak.
Peralatan ini dipasang langsung di bawah outlet silo dan menggunakan dua poros berputar untuk menghancurkan gumpalan semen dan clinker yang mengeras sebelum material masuk ke conveyor. Dengan demikian, aliran material menjadi lebih stabil, risiko penyumbatan berkurang, dan peralatan downstream seperti air slide conveyor dan screw conveyor terlindungi dari kerusakan.
Cement lump breaking valve sangat cocok digunakan di pabrik semen, silo clinker, silo abu terbang, serta sistem penanganan material curah lainnya, terutama di daerah beriklim lembap.
