(EN) How Industrial Bag Filter Dust Collection Systems Operate
(ID) Prinsip Kerja Bag Filter Industri pada Sistem Pengendalian Debu
1️⃣ What Is the Bag Filter Working Principle?
The bag filter working principle is based on surface filtration, where dust-laden air passes through fabric filter bags and solid particles are retained on the outer surface of the filter media.
A bag filter works by forcing dust-laden gas through fabric filter bags, allowing particulate matter to be captured while clean air passes through.
Industrial bag filters are widely used in cement plants, lime production lines, fly ash handling systems, and bulk material transfer stations.This explains the core Bag Filter Working Principle used in modern cement plants.
👉 Industrial Bag Filter System
2️⃣ Airflow Path Inside a Baghouse System
Understanding airflow is critical to understanding how a bag filter works.
Typical airflow sequence:
- Dust-laden air enters the inlet duct
- Air expands inside the housing
- Particles slow down and distribute evenly
- Air passes through filter bags
- Clean air exits through the outlet plenum
Uniform airflow distribution improves filtration efficiency and prevents localized bag wear.
👉 For bulk material handling airflow design references, see CEMA.
3️⃣ Dust Separation Mechanism (Dust Cake Formation)
Unlike cyclone separators, bag filters rely on dust cake filtration.
How dust separation occurs:
- Initial dust particles form a thin layer on bag surface
- Dust cake enhances filtration efficiency
- Fine particles are captured by the dust layer itself
A stable dust cake is essential for high-efficiency filtration in baghouse systems.
This is why bag filters can achieve over 99% dust removal efficiency, especially for fine cement powder.
4️⃣ Pulse Jet Cleaning Working Principle
Most modern industrial bag filters use pulse jet cleaning.
Pulse jet process:
- Compressed air is stored in an air header
- A solenoid valve opens momentarily
- A short air pulse travels down the bag
- Dust cake detaches and falls into hopper
Pulse jet cleaning allows continuous operation without stopping airflow.This pulse cleaning method is essential to the Bag Filter Working Principle.
👉 For cement industry dust control practices, refer to Global Cement.
5️⃣ Pressure Drop Behavior During Operation
Pressure drop is a key indicator of bag filter performance.
Normal operating range:
- 1200 – 1800 Pa (cement plant applications)
Pressure drop increases when:
- Dust cake becomes too thick
- Pulse cleaning frequency is insufficient
- Air-to-cloth ratio is too high
High pressure drop in a bag filter system directly increases fan energy consumption.
6️⃣ Bag Filter vs Cyclone: Working Principle Comparison
| Aspect | Bag Filter | Cyclone |
|---|---|---|
| Separation method | Fabric filtration | Centrifugal force |
| Fine dust removal | Excellent | Limited |
| Emission control | Strict | Moderate |
| Typical efficiency | >99% | 70–85% |
Bag filters are preferred when emission limits below 30 mg/Nm³ are required.
👉 For regulatory background, see United States Environmental Protection Agency (EPA).
7️⃣ Typical Applications in Cement Plants
Bag filter working principle is applied in:
- Kiln exhaust gas filtration
- Raw mill vent systems
- Clinker cooler dust control
- Cement silo top vent filters

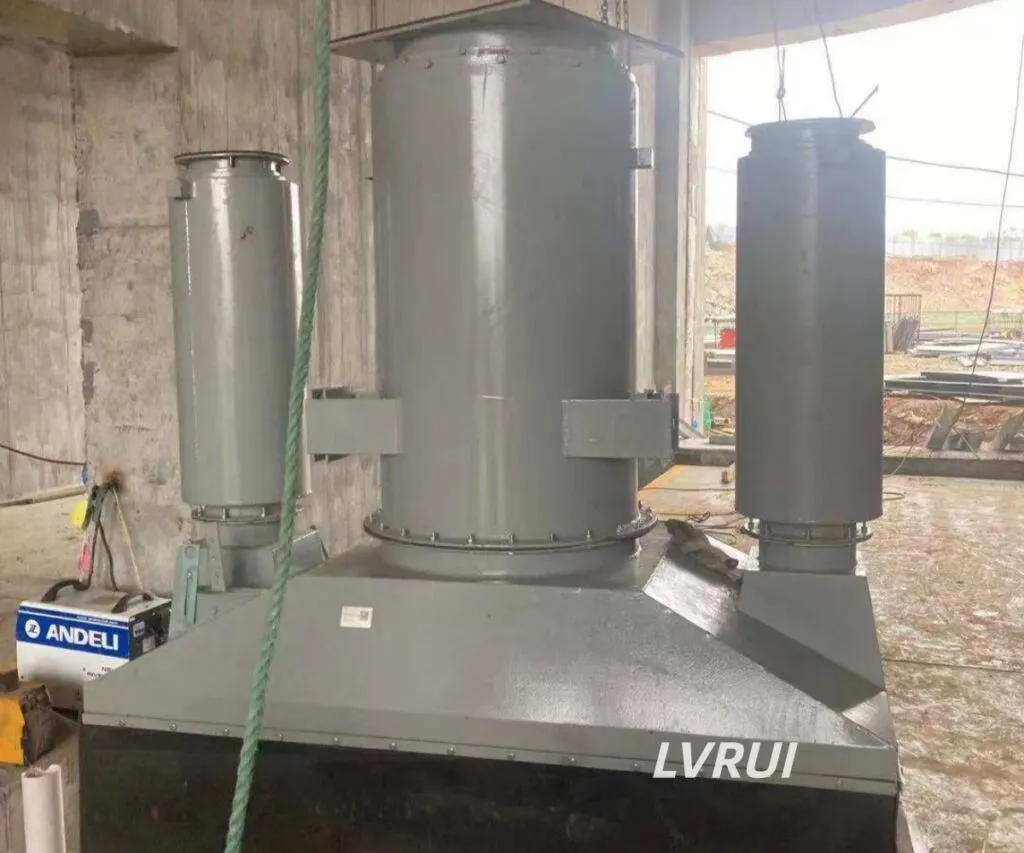

- Bulk loading chute dust collection
👉 cement loading chute dust collection
FAQ – Bag Filter Working Principle
How does a bag filter remove dust?
A bag filter removes dust by forcing air through fabric filter bags, where particles are captured on the bag surface.
Why is pulse jet cleaning important?
Pulse jet cleaning removes accumulated dust cake and maintains stable pressure drop during continuous operation.
Is a bag filter suitable for fine cement dust?
Yes. Bag filters are highly effective for fine cement dust and meet strict emission standards.
What happens if cleaning is insufficient?
Insufficient cleaning leads to high pressure drop, increased energy consumption, and reduced bag life.
Prinsip Kerja Bag Filter Industri
Prinsip kerja bag filter industri adalah filtrasi permukaan, di mana udara berdebu melewati kantong filter dan partikel tertahan di permukaan kain.
Sistem pulse jet digunakan untuk membersihkan kantong filter tanpa menghentikan operasi, sehingga cocok untuk pabrik semen dan industri material curah.
Keunggulan utama:
- Efisiensi filtrasi >99%
- Cocok untuk debu halus
- Stabil untuk operasi terus-menerus
- Memenuhi standar emisi ketat
